User Option Mode

The BCM offers 3 items user option mode for a user convenience (AUTO DOOR LOCK, ARM/DISARM BY KEY, HORN ANSWER BACK)

• It is able to set up the enable or disable of AUTO DOOR LOCK function or AUTO DOOR LOCK operation vehicle speed when using it.
• It is able to set up the enable or disable of enter the burglar alarm mode when using door lock by the key.
• It is able to set up the enable or disable of horn inform function when using door lock by the key or RKE.

1. Select option "SNATAFF (CM)" and press ENTER.
2. Select option "BODY CONTROL MODULE" and press ENTER.

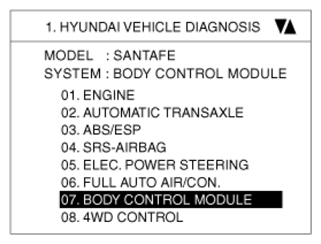

   Fig 1: Selecting Body Control Module

   Courtesy of HYUNDAI MOTOR CO.
3. Select option "USER OPTION" and press ENTER.

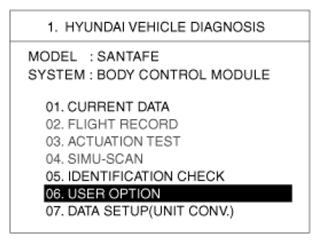

   Fig 2: Selecting User Option

   Courtesy of HYUNDAI MOTOR CO.
4. Select option "AUTO DOOR LOCK STATUS" by using the direction button.
5. Select the parameter by using the direction button (□/□) and press ENTER to save it.

   (Disable/5km/h/10km/h/15km/h/20km/h/25km/h/30km/h/35km/h/40km/h)

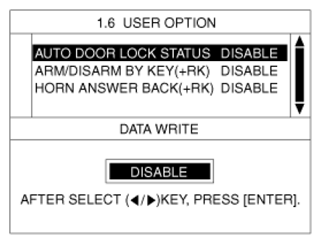

   Fig 3: Selecting Auto Door Lock Status Disable

   Courtesy of HYUNDAI MOTOR CO.
6. Select option "ARM/DISARM BY KEY (+RKE)" by using the direction button.
7. Select the parameter by using the direction button (□/□) and press ENTER to save it. (Disable/Enable)
8. Select option "HORN ANSWER BACK (+RK)" by using the direction button.
9. Select the parameter by using the direction button and press ENTER to save it (Disable/Enable)
