Repair procedures: Removal

Set room side lever and T/M side lever to "N" position.
Remove the battery and the battery tray. (Refer to REPAIR PROCEDURES .)
Remove the air cleaner assembly. (Refer to INTAKE MANIFOLD .)
Remove the shift cable mounting nut (B).
Tightening torque:

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)
Disconnect the inhibitor switch connector (A).

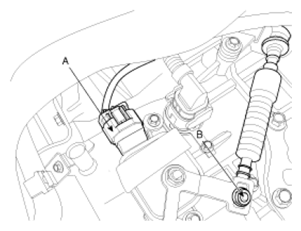

Fig 1: Identifying Inhibitor Switch Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the manual control lever (A) and the washer (B) after removing a nut (C).

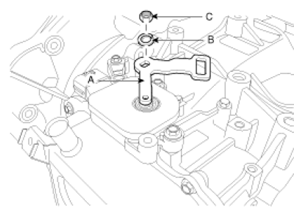

Fig 2: Identifying Manual Control Lever, Nut And Washer
Courtesy of HYUNDAI MOTOR CO.

CAUTION: When installing, fix the manual control lever and the inhibitor switch with ø5mm (0.1969in.) fixing jig.
And then tighten the inhibitor assembly mounting bolts.
Remove the inhibitor assembly (A) after removing the bolts (2ea).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

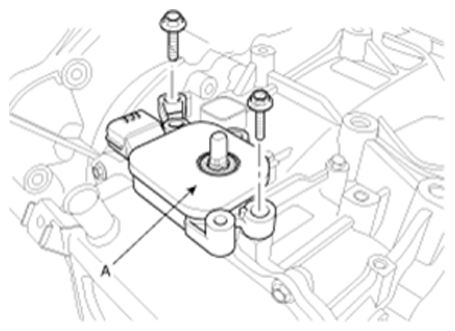

Fig 3: Identifying Inhibitor Assembly
Courtesy of HYUNDAI MOTOR CO.

CAUTION: When installing, tighten the inhibitor assembly mounting bolt lightly.
