Home >> Hyundai >> 2011 >> Santa Fe SE, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Engine And Transaxle Assembly - G3.5 DOHC >> Engine Mounting >> Components and Components Location >> Components

Components and Components Location: Components

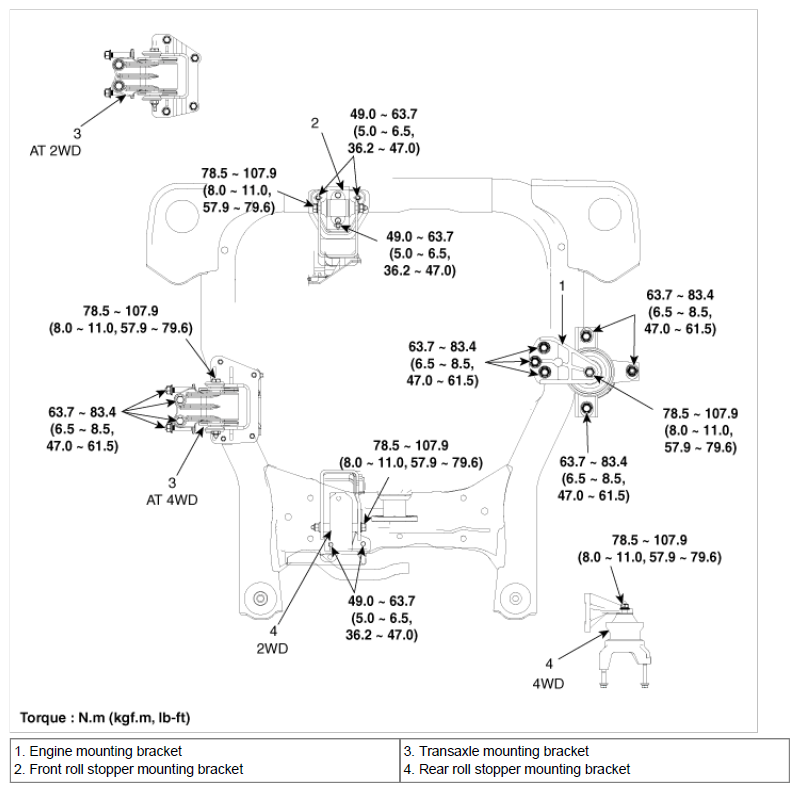

Fig 1: Engine And Transaxle Assembly Replacement Components With Torque Specifications

G06848028

Courtesy of HYUNDAI MOTOR CO.
