Tire Wear: Notes

  1. Measure the tread depth of the tires.

    Tread depth [limit]  : 1.6 mm (0.063 in)

  2. If the remaining tread (A) depth is less than the limit, replace the tire.
    NOTE: When the tread depth of the tires is less than 1.6 mm (0.063 in), the wear indicators (B) will appear.

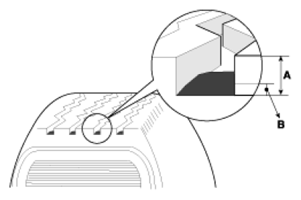

    Fig 1: Identifying Tread Depth Of Tire
    G06847254Courtesy of HYUNDAI MOTOR CO.
