Repair procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the console upper cover. (Refer to CONSOLE .)
Remove the front console assembly. (Refer to CONSOLE .)
Remove the snap pin (A) and the clips (B).

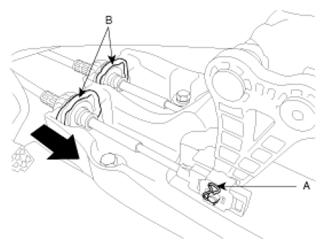

Fig 1: Removing Snap Pin And Clips
Courtesy of HYUNDAI MOTOR CO.
Remove the clip (A) from the shift cable.

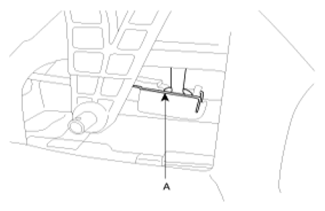

Fig 2: Identifying Shift Cable Clip
Courtesy of HYUNDAI MOTOR CO.
Remove the shift lever assembly (A).
Tightening torque :

8.8~13.7N.m (0.9~1.4kgf.m, 6.5~10.1lb-ft)

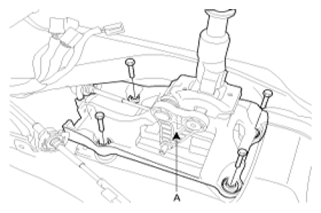

Fig 3: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the retainer (A) and the nuts (B).
Tightening torque :

8.8~13.7N.m (0.9~1.4kgf.m, 6.5~10.1lb-ft)

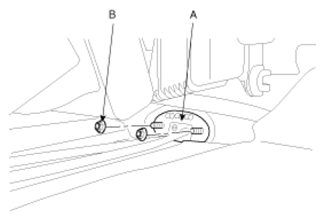

Fig 4: Identifying Retainer And Nuts
Courtesy of HYUNDAI MOTOR CO.
