Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

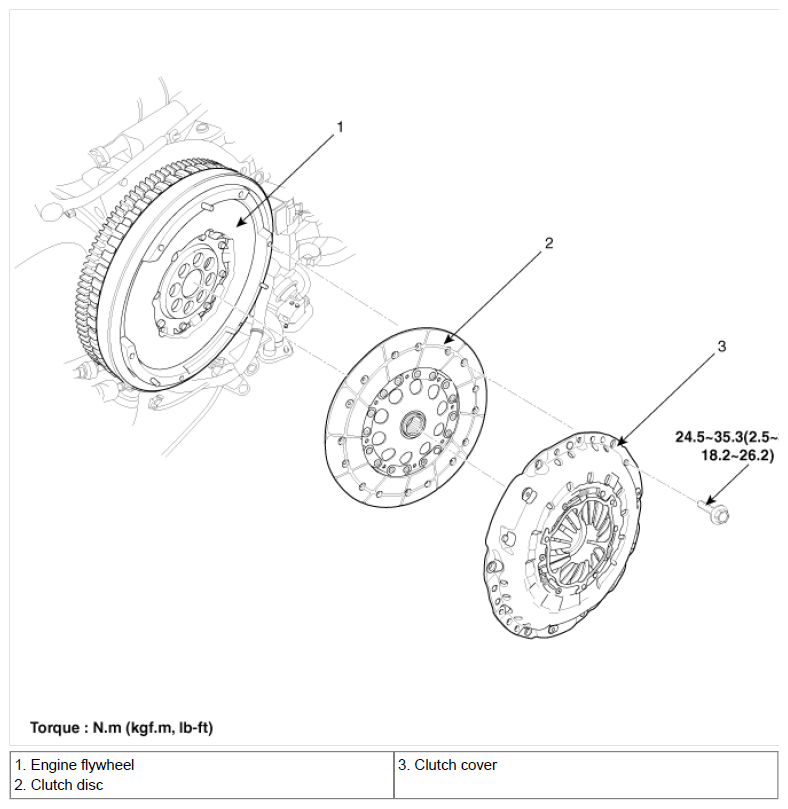

Fig 1: Engine Flywheel, Clutch Disc And Clutch Cover With Torque Specification
G06846928Courtesy of HYUNDAI MOTOR CO.
