Repair procedures: Installation

WARNING: This page is about a different variant/trim than selected.

Installation is the reverse of removal.
CAUTION:
After replacement or reinstallation procedure of the automatic transaxle assembly, must perform procedures below.
- Power steering fluid replacement and air bleeding (Refer to GENERAL INFORMATION - STEERING SYSTEM .)
- Adding automatic transaxle fluid. (Refer to AUTOMATIC TRANSAXLE SYSTEM .)
NOTE:

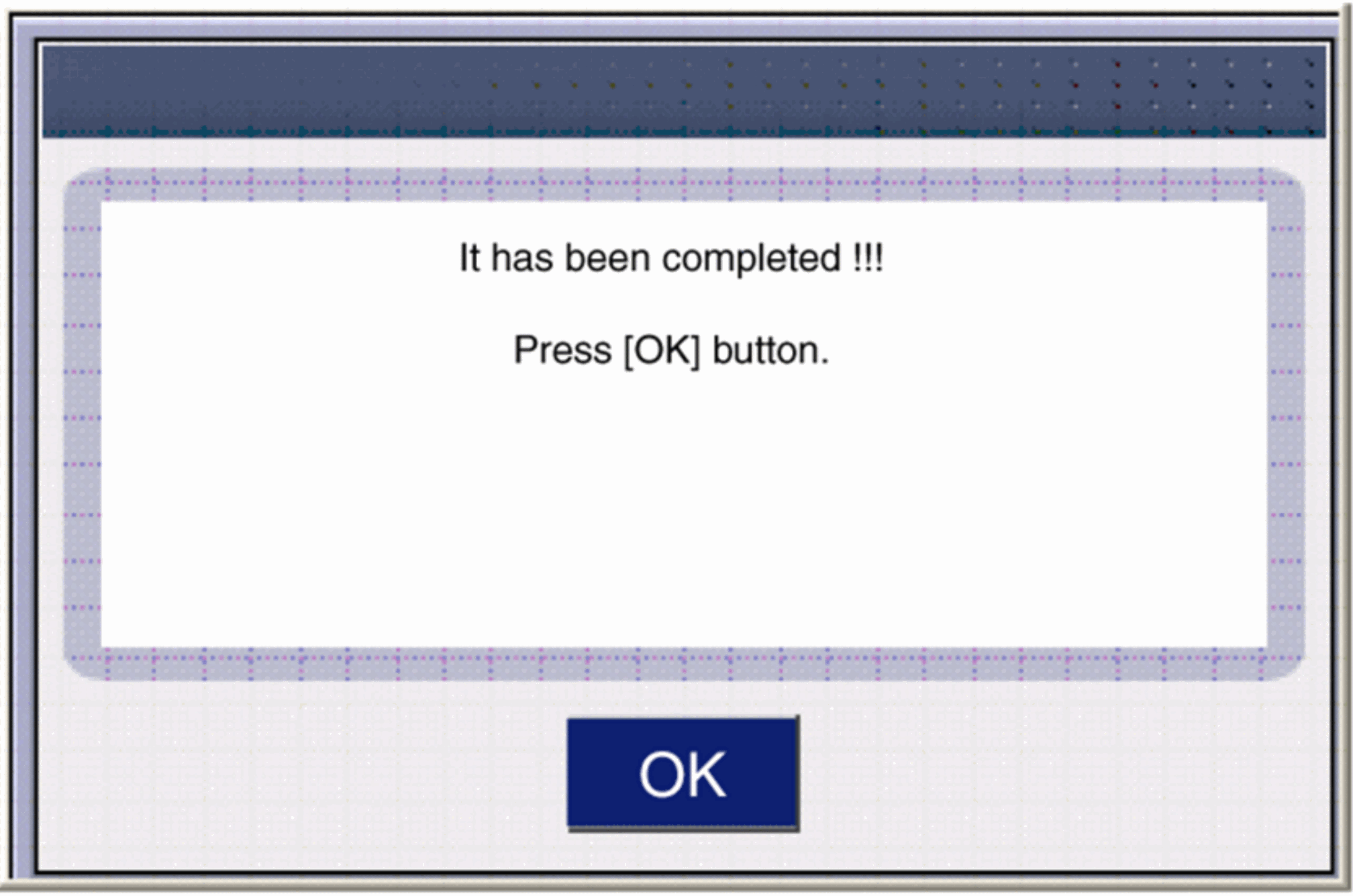

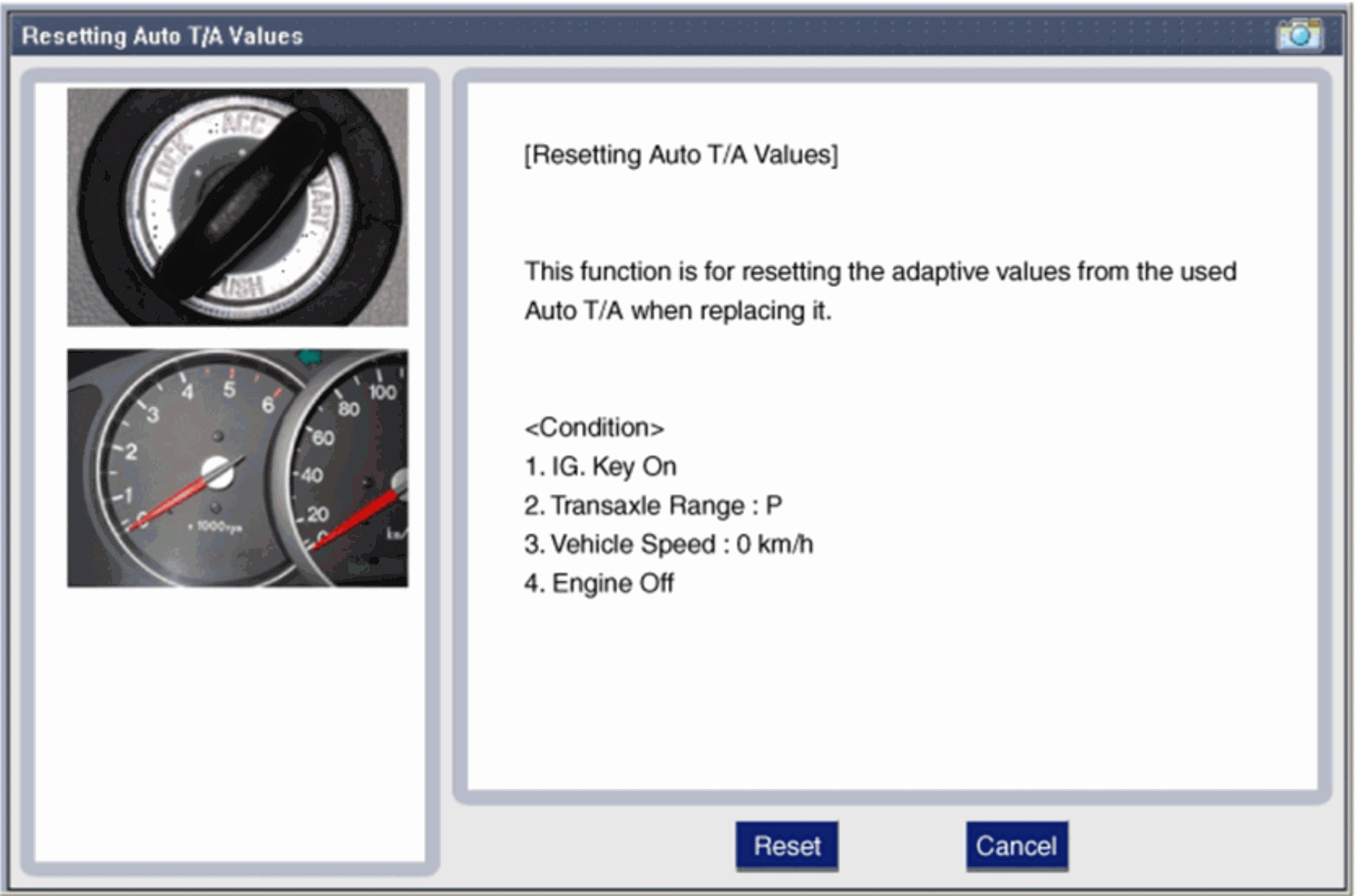

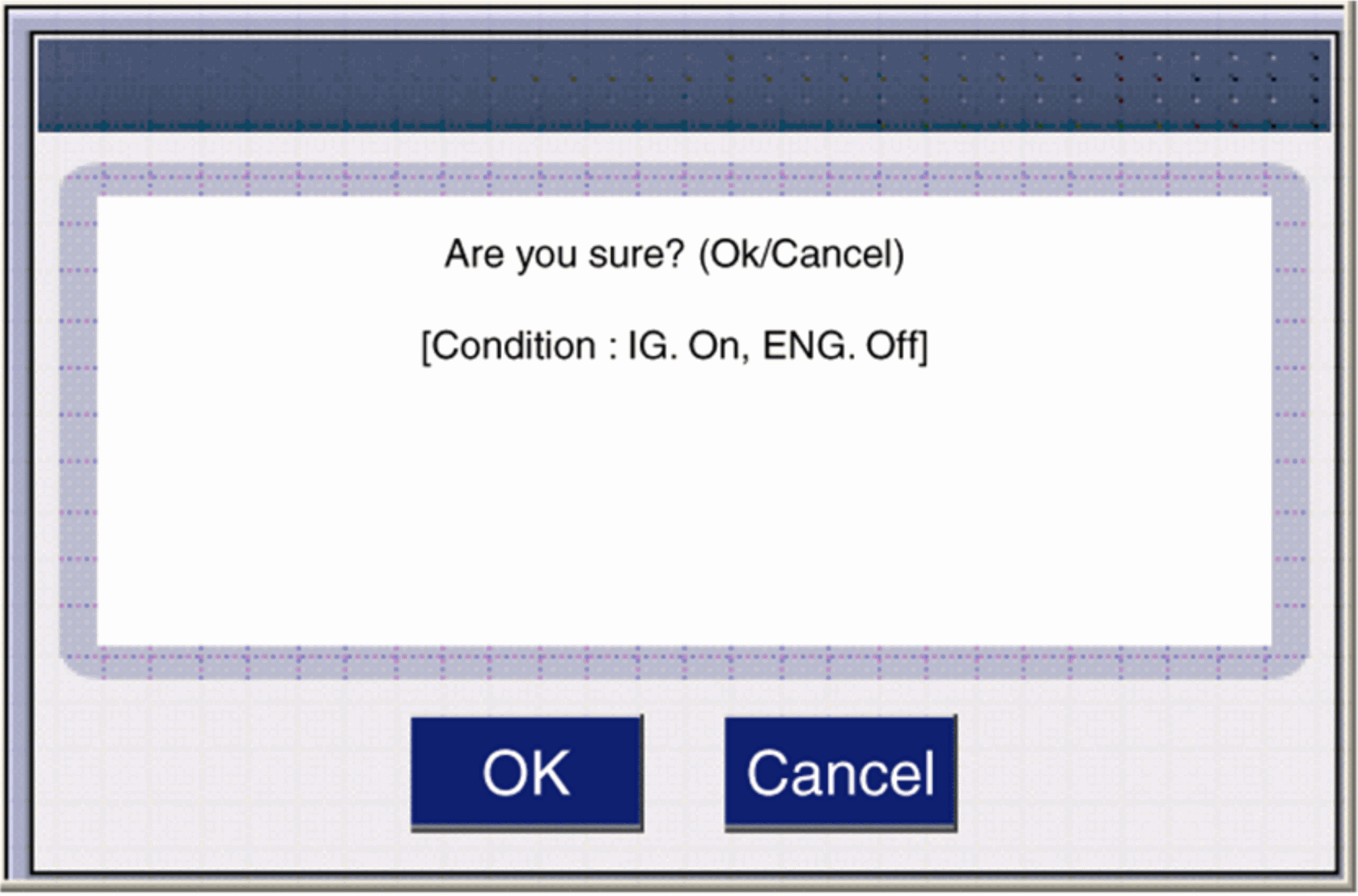

- When replacing the automatic transaxle, reset the automatic transaxle's values by using the GDS.
  [Condition]
- IG Key On
- Transaxle Range:P
- Vehicle Speed :0 km/h
- Engine Off
