Section 11 (Automatic Transaxle System - A6MF2)
>>
Automatic Transaxle
>>
Components and Components Location
>>
Components (1)
Components (1)
WARNING:
This page is about a different variant/trim than selected.

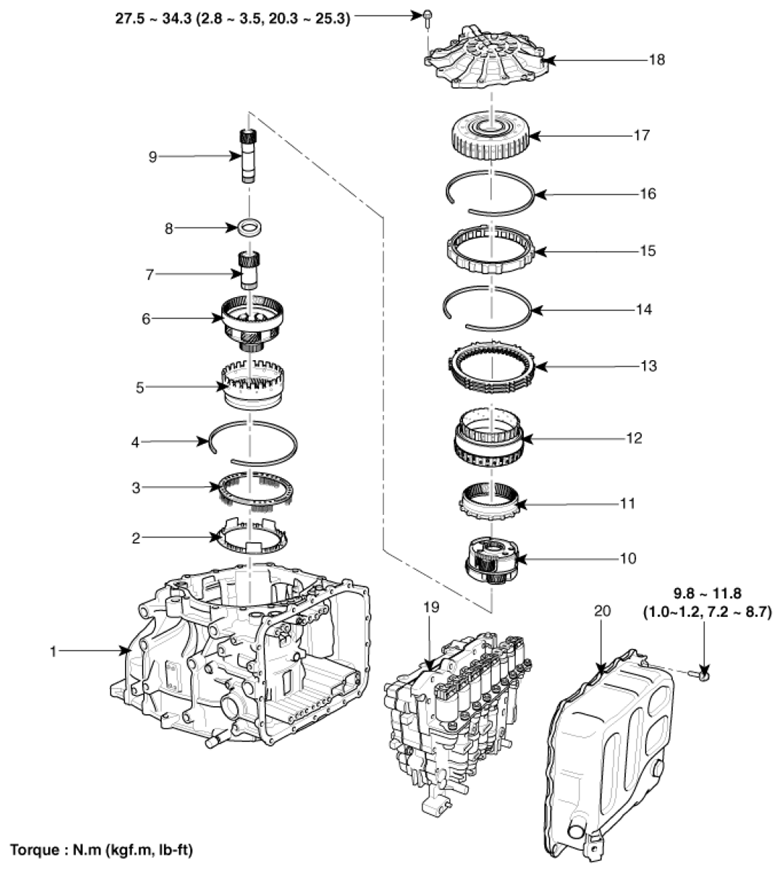

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.
