Components And Components Location: Components

WARNING: This page is about a different car, the 2010 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

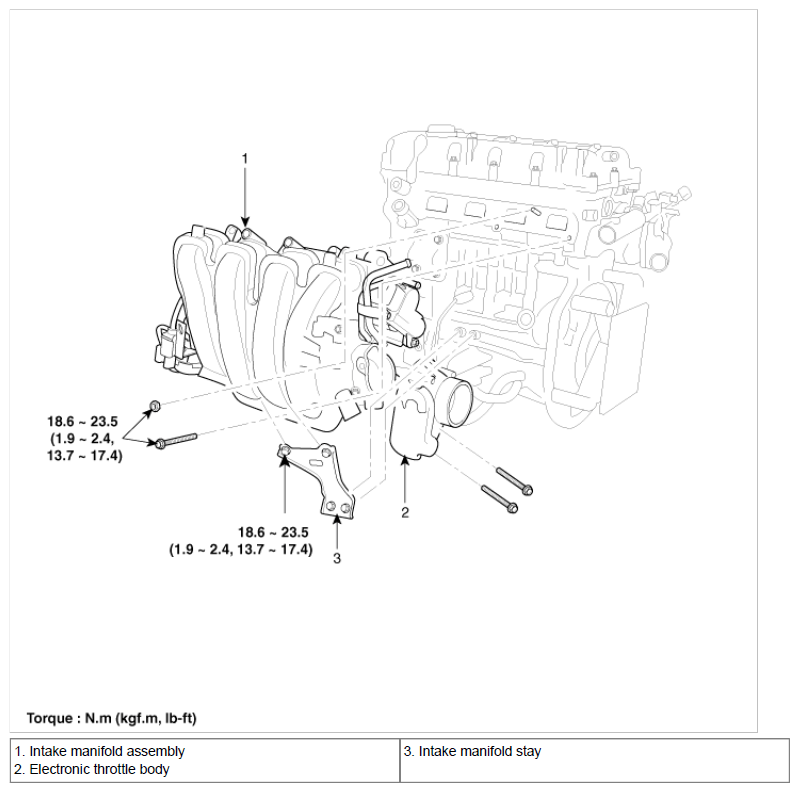

Fig 1: Intake Manifold Components With Torque Specifications
G06846618Courtesy of HYUNDAI MOTOR CO.
