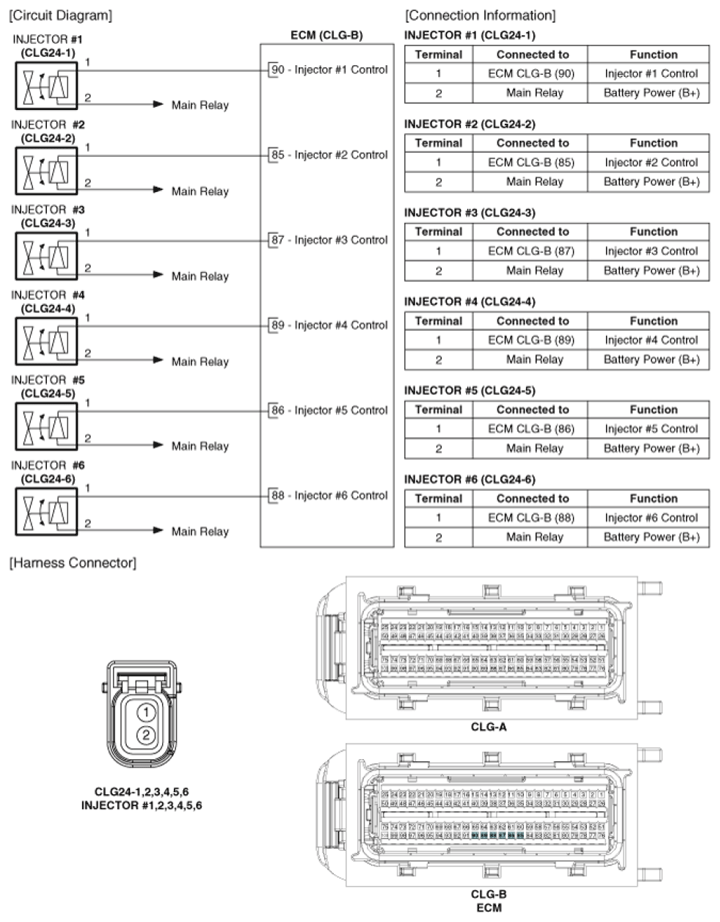

Home >> Hyundai >> 2011 >> Santa Fe SE, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - G3.5 DOHC >> Injector >> Schematic Diagrams >> Circuit Diagram
