Repair procedures: Removal

[CVVT Oil Control Valve (Intake)]

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Remove the intake manifold. (Refer to INTAKE AND EXHAUST SYSTEM .)
3. Disconnect the CVVT oil control valve connector (A).
4. Remove the installation bolt (B), and then remove the valve from the engine.

   [Bank 1]

   Fig 1: Locating CVVT Oil Control Valve Connector And Bolt (Bank 1)

   Courtesy of HYUNDAI MOTOR CO.

   [Bank 2]

   Fig 2: Locating CVVT Oil Control Valve Connector And Bolt (Bank 2)

   Courtesy of HYUNDAI MOTOR CO.

[CVVT Oil Control Valve (Exhaust)]

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Disconnect the CVVT oil control valve connector (A).

   [Bank 1]

   Fig 3: Locating CVVT Oil Control Valve Connector (Bank 1)

   Courtesy of HYUNDAI MOTOR CO.

   [Bank 2]

   Fig 4: Locating CVVT Oil Control Valve Connector (Bank 2)

   Courtesy of HYUNDAI MOTOR CO.
3. Remove the cylinder head cover. (Refer to CYLINDER HEAD ASSEMBLY .)
4. Remove the installation bolt (A), and then remove the valve from the engine.

   [Bank 1]

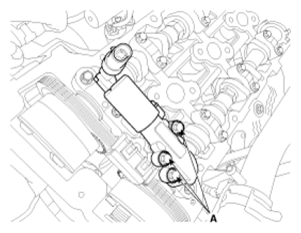

   Fig 5: Locating CVVT Oil Control Valve Bolts (Bank 1)

   Courtesy of HYUNDAI MOTOR CO.

   [Bank 2]

   Fig 6: Locating CVVT Oil Control Valve Bolts (Bank 2)

   Courtesy of HYUNDAI MOTOR CO.
