Schematic Diagram: Notes

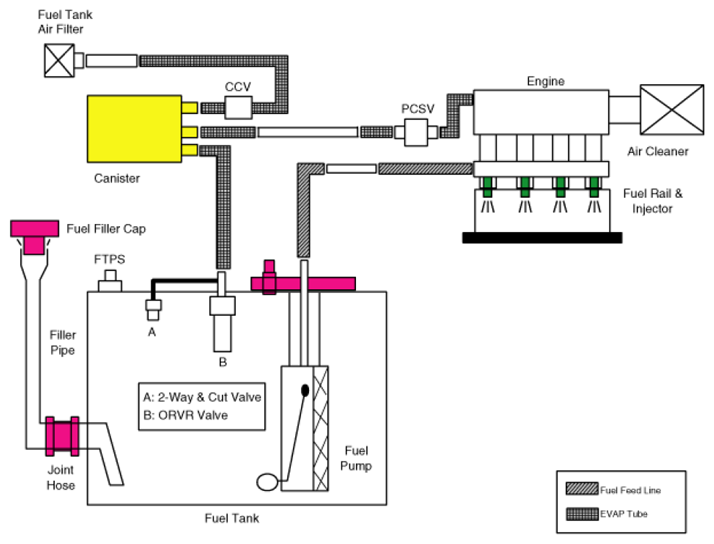

Fig 1: Evaporative Emission Control System - Schematic Diagram

G06846756

Courtesy of HYUNDAI MOTOR CO.
