Guide Assembly Replacement

Remove the sunroof assembly.
Remove a guide assembly (A) after lowering a guide thoroughly by pushing a slide to rear.

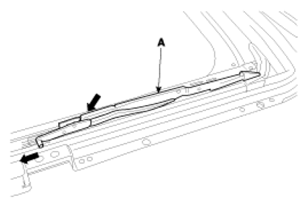

Fig 1: Identifying Guide Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the guide (A) and slide (B).

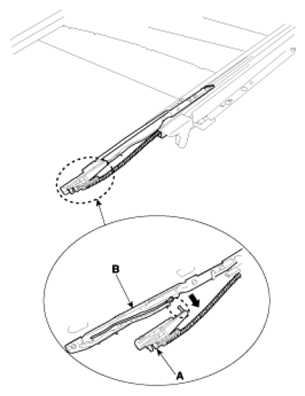

Fig 2: Identifying Guide And Slide
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure to align the slide with the center of "A" and "B"
- Make sure to initialize the motor.

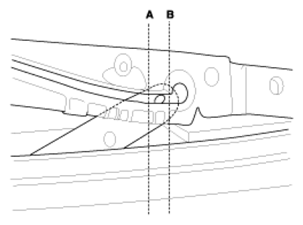

  Fig 3: Aligning Motor Slide Center
  Courtesy of HYUNDAI MOTOR CO.
