Key matrix
Key matrix

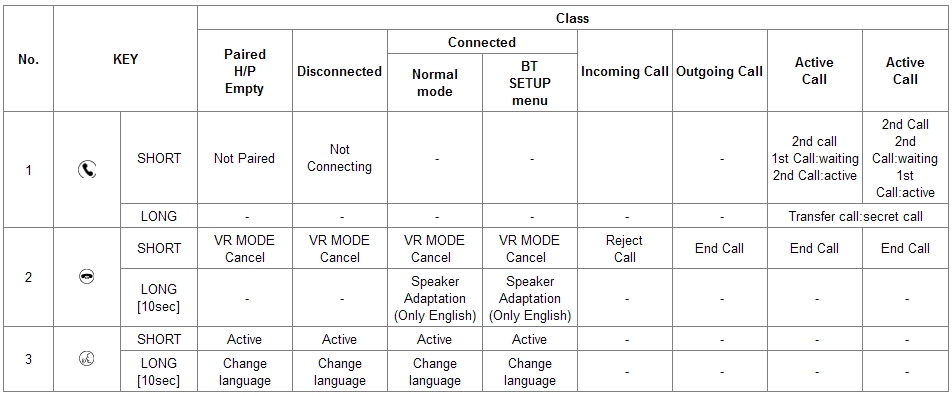

Fig 1: Bluetooth Key Matrix
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
