Customer Complaint Analysis Check Sheet: Notes

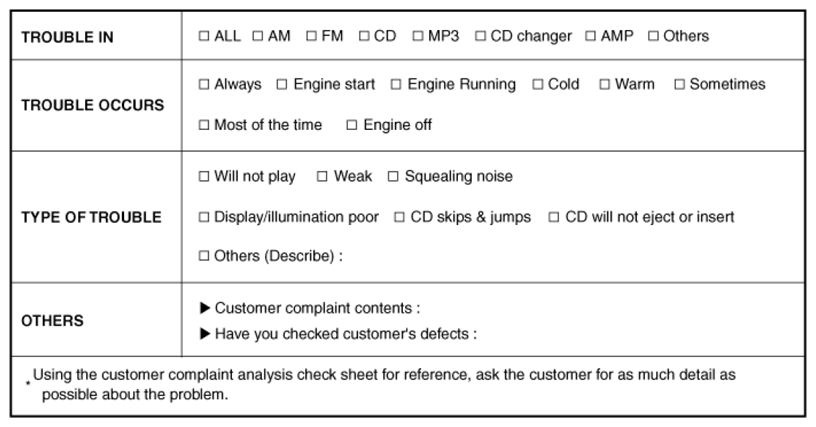

Fig 1: Customer Complaint Analysis Check Sheet
G06847673Courtesy of HYUNDAI MOTOR CO.

There are 5 areas where a problem can occur: wiring harness, the radio, the CD player, antenna and speaker. Troubleshooting enables you to confine the problem to a particular area.

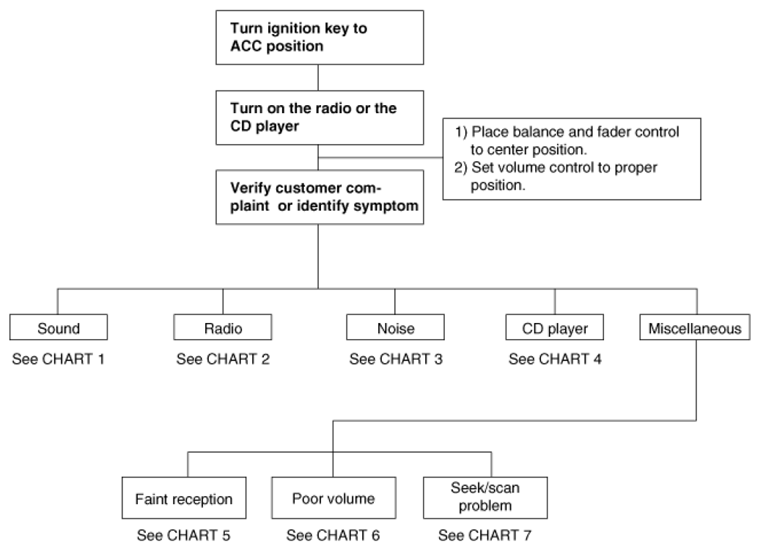

Fig 2: Troubleshooting Chart Of Audio System
G06847674Courtesy of HYUNDAI MOTOR CO.
