Home >> Hyundai >> 2011 >> Santa Fe SE, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio System >> Multimedia jack >> Components and Components Location >> Components

Components and Components Location: Components

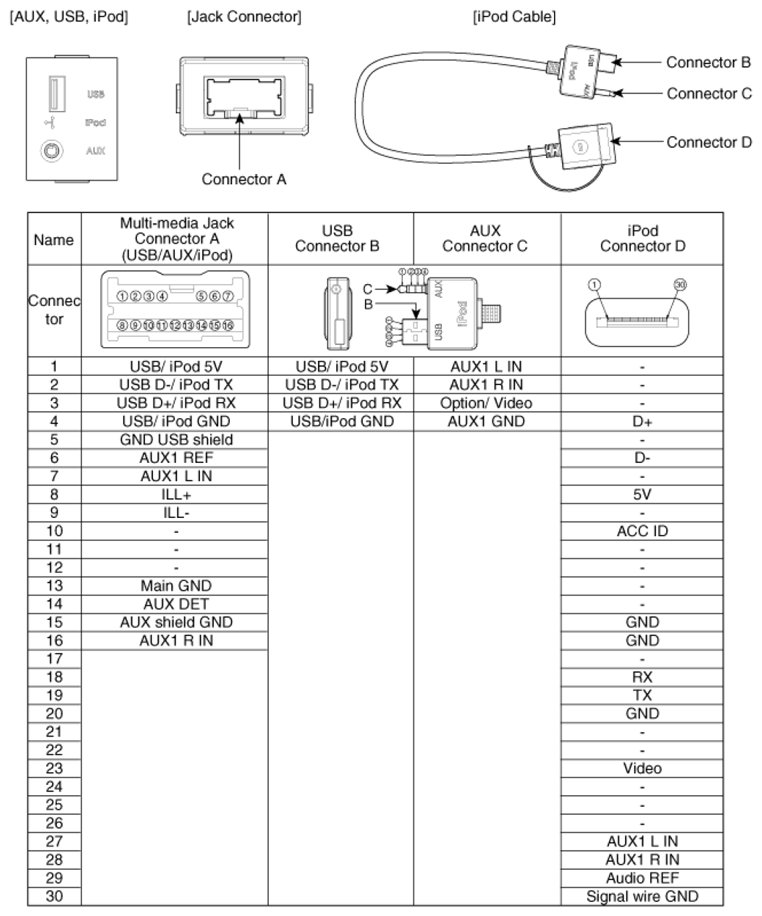

Fig 1: Identifying Multimedia Jack Connectors

G06847667

Courtesy of HYUNDAI MOTOR CO.
