Repair procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center grill (A).

    (Refer to the "CRASH PAD ")

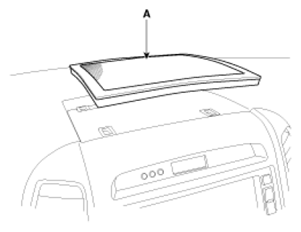

    Fig 1: Identifying Crash Pad Center Grill
    G06847643Courtesy of HYUNDAI MOTOR CO.
  3. Remove the crash pad center lower garnish (A).
    Fig 2: Identifying Crash Pad Center Lower Garnish
    G06847644Courtesy of HYUNDAI MOTOR CO.
  4. Remove the center facia panel (A) after loosening the screws.

    (Refer to the "CRASH PAD ")

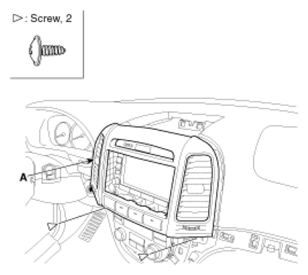

    Fig 3: Identifying Center Facia Panel
    G06847645Courtesy of HYUNDAI MOTOR CO.
  5. Remove the connectors.
  6. Remove the mounting bolts then remove the audio unit (A).
    Fig 4: Identifying Audio Unit With Mounting Bolts
    G06847646Courtesy of HYUNDAI MOTOR CO.
  7. Remove the audio unit after disconnecting the audio connectors and cable.
  8. Installation is the reverse of removal.
