Components and Components Location: Components

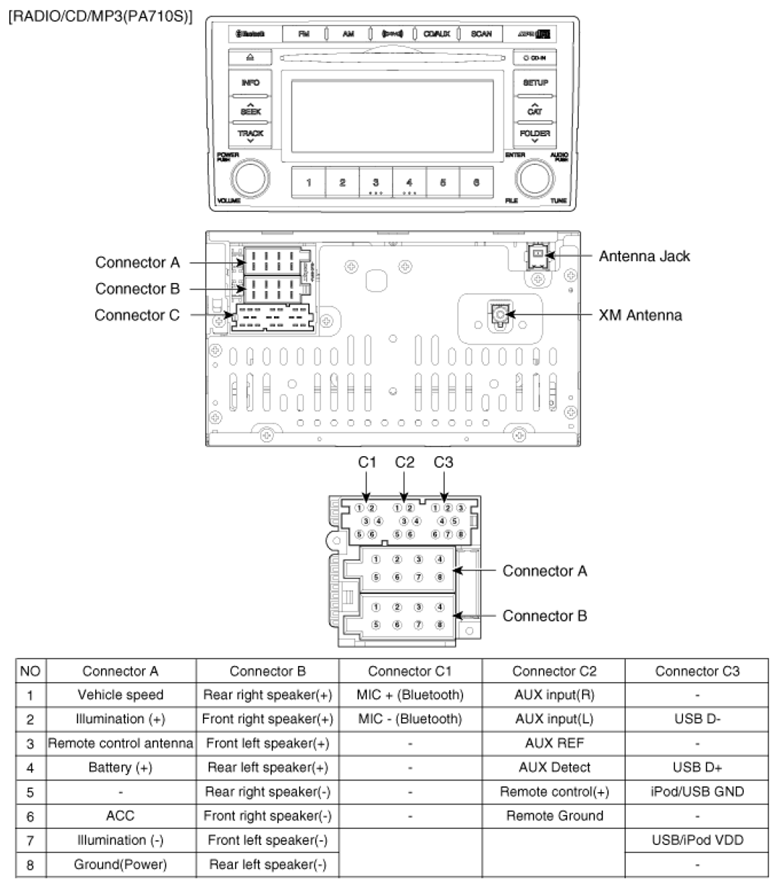

Fig 1: Identifying Audio Unit Connectors - Radio/CDC/MP3 (PA710S)

Courtesy of HYUNDAI MOTOR CO.

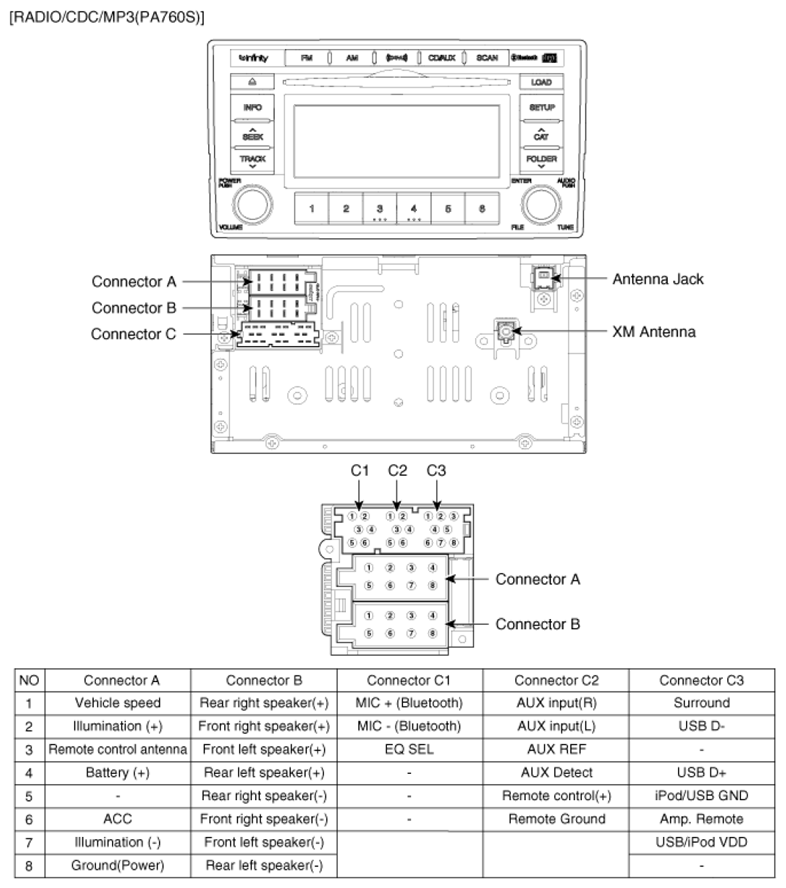

Fig 2: Identifying Audio Unit Connectors - Radio/CDC/MP3 (PA760S)

Courtesy of HYUNDAI MOTOR CO.

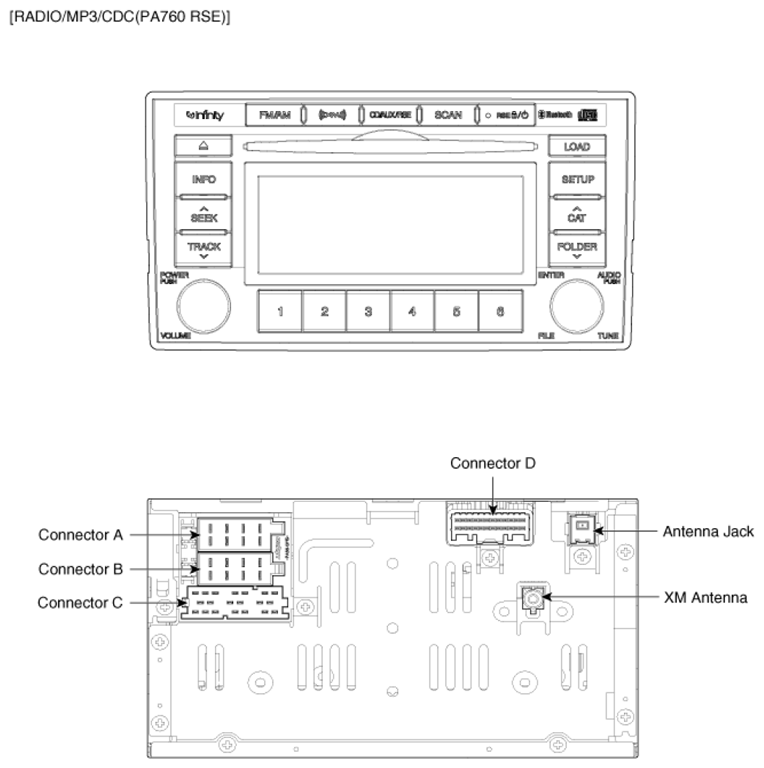

Fig 3: Identifying Audio Unit Connectors - Radio/MP3/CDC (PA760S RSE) (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

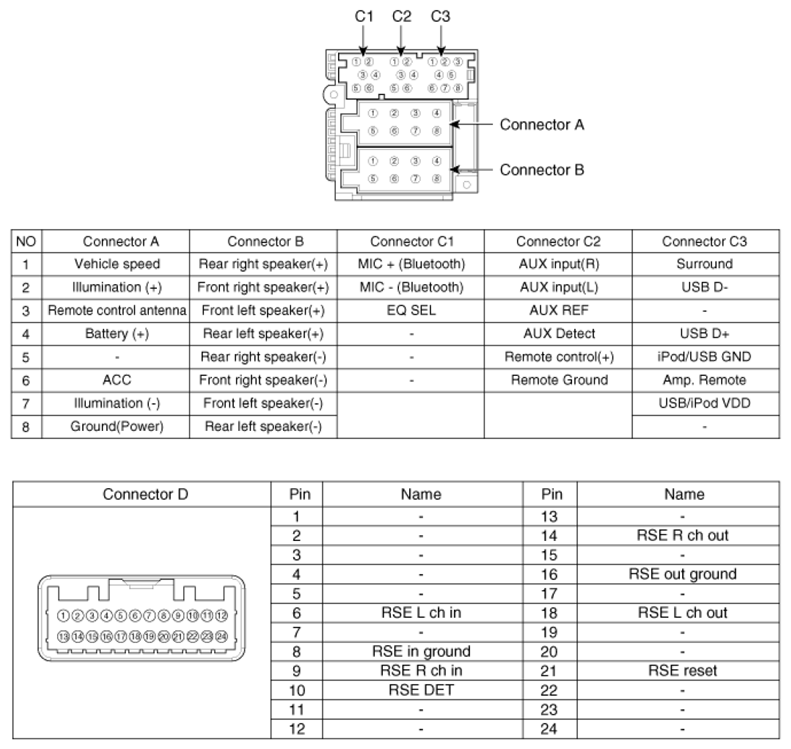

Fig 4: Identifying Audio Unit Connectors - Radio/MP3/CDC (PA760S RSE) (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.

External Amp

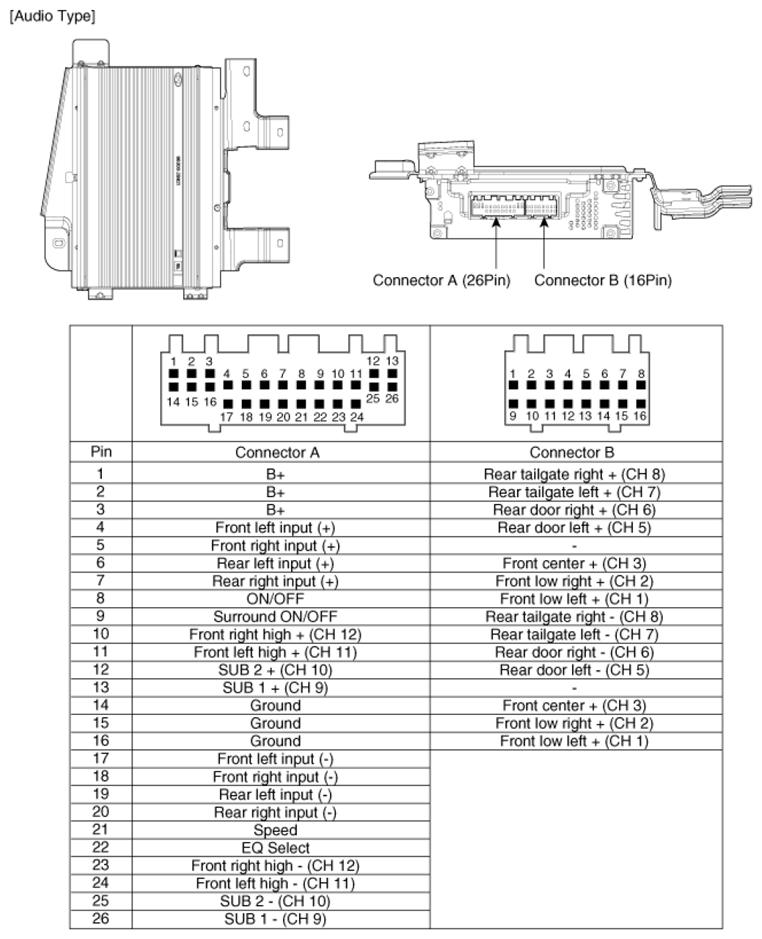

Fig 5: Identifying External Amplifier Connectors

Courtesy of HYUNDAI MOTOR CO.
