Components and Components Location: Components

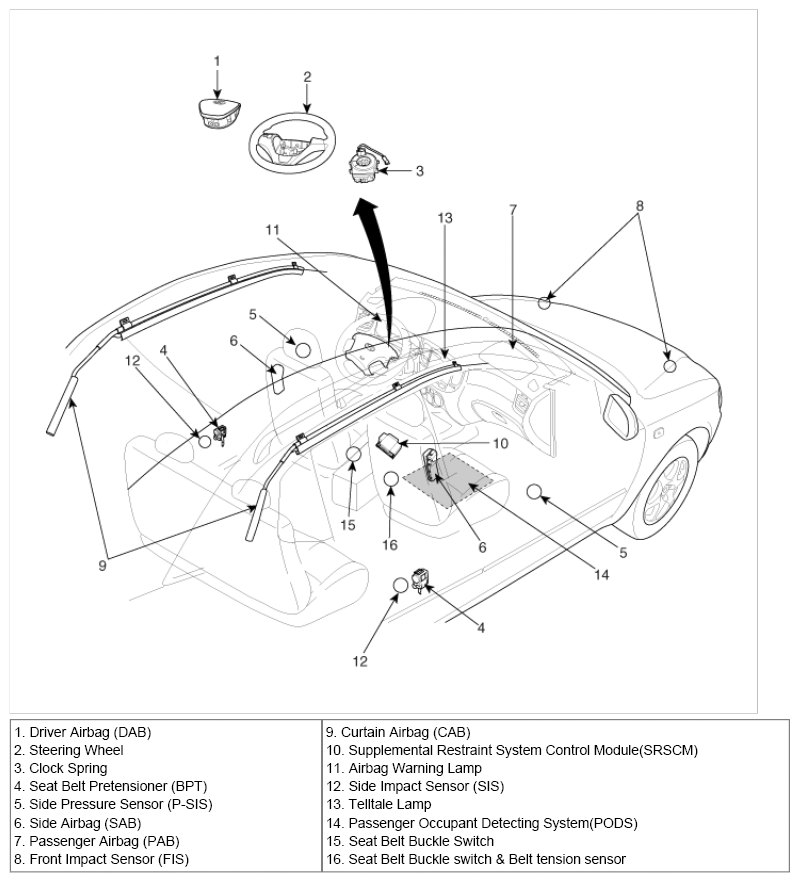

Fig 1: Locating SRS System Components

G06513008

Courtesy of HYUNDAI MOTOR CO.
