Front Upper Arm: Replacement

Remove the front wheel & tire.
Tightening torque:

90 ~ 110 N.m (9.0 ~ 11.0kgf.m, 65 ~ 80lb-ft)
Remove the front assembly.
(Refer to FRONT STRUT ASSEMBLY .)
Disconnect the front upper arm (A) with the front strut assembly bracket (B) by loosening the bolt.
Tightening torque:

100 ~ 120 N.m (10.0 ~ 12.0kgf.m, 72 ~ 87lb-ft)

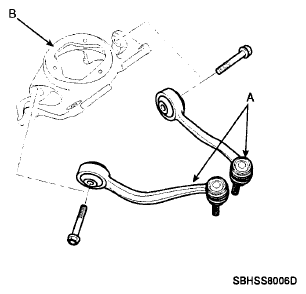

Fig 1: Identifying Front Upper Arm And Front Strut Assembly Bracket
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
CAUTION: Keep mind in upper arm installing angle.
