Front Strut Assembly: Replacement

Remove the front wheel & tire.
Tightening torque:

90 ~ 110 N.m (9.0 ~ 11.0kgf.m, 65 ~ 80lb-ft)
Disconnect the stabilizer link with the front strut assembly by loosening the nuts (A).
Tightening torque:

100 ~ 120 N.m (10.0 ~ 12.0kgf.m, 72 ~ 87lb-ft)
Disconnect the front strut assembly (C) with the front lower arm by loosening the bolt & nuts (B).
Tightening torque:

140 ~ 160 N.m (14.0 ~ 16.0kgf.m, 101 ~ 116lb-ft)

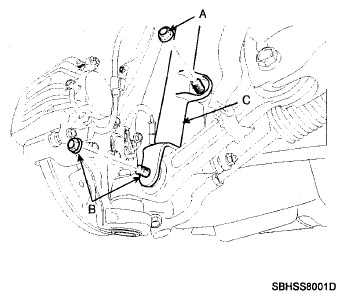

Fig 1: Identifying Front Strut Assembly And Nuts
Courtesy of HYUNDAI MOTOR CO.
Remove the split pin and castle nuts (A).
Tightening torque:

80 ~ 90 N.m (8.0 ~ 9.0kgf.m, 58 ~ 65lb-ft)

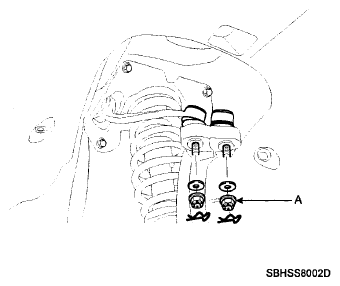

Fig 2: Identifying Split Pin And Castle Nuts
Courtesy of HYUNDAI MOTOR CO.
Disconnect the front upper arm (A) with the knuckle using a SST (09568-2J100).

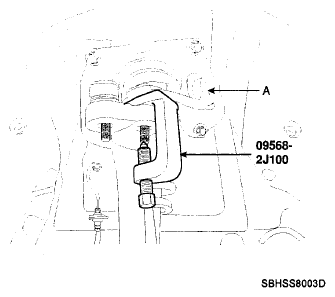

Fig 3: Disconnecting Front Upper Arm With Knuckle Using SST (09568-2J100)
Courtesy of HYUNDAI MOTOR CO.
Disconnect the front strut assembly with the frame by loosening the mounting bolt (A).
Tightening torque:

55 ~ 65 N.m (5.5 ~ 6.5kgf.m, 40 ~ 47lb-ft)

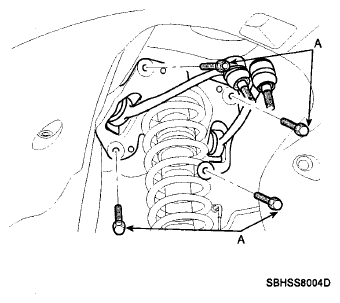

Fig 4: Identifying Front Strut Assembly And Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
Disconnect the bracket (B) with the front strut assembly (A) loosening the nuts.
Tightening torque:

20 ~ 30 N.m (2.0 ~ 3.0kgf.m, 14 ~ 22lb-ft)

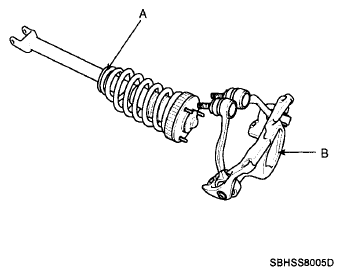

Fig 5: Identifying Bracket And Front Strut Assembly
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
