Front Stabilizer Bar: Replacement

Disconnect the stabilizer link (B) with the front strut assembly by loosening the nuts (A).
Tightening torque:

100 ~ 120 N.m (10.0 ~ 12.0kgf.m, 72 ~ 87lb-ft)

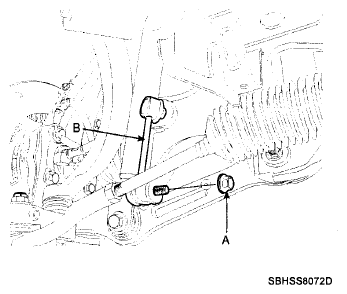

Fig 1: Identifying Stabilizer Link With Front Strut Assembly And Nuts
Courtesy of HYUNDAI MOTOR CO.
Disconnect the stabilizer bar with the frame by loosening the bolts (A).
Tightening torque:

45 ~ 55 N.m (4.5 ~ 5.5kgf.m, 33 ~ 40lb-ft)

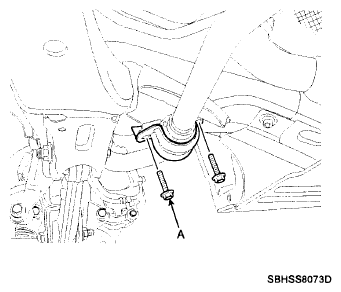

Fig 2: Identifying Stabilizer Bar With Frame And Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the stabilizer link (A), clamp (B), bushing (C).
Tightening torque:

100 ~ 120 N.m (10.0 ~ 12.0kgf.m, 72 ~ 87lb-ft)

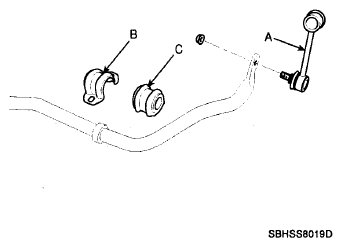

Fig 3: Identifying Stabilizer Link, Clamp, Bushing
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
CAUTION: Do not use the lock nuts again.
