Power Steering Motor: Replacement

Remove the Front bumper. (Refer to BUMPER )
Remove the left head light. (Refer to LIGHTING SYSTEM )
Disconnect the connector (A) and then loosen the bolts (B).

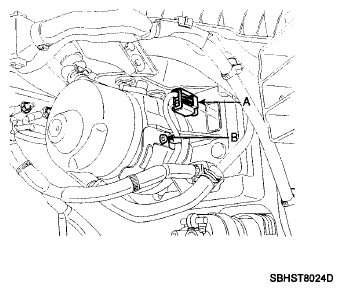

Fig 1: Identifying Connector And Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the air cleaner by disconnecting the seal ring (A), hose (B).

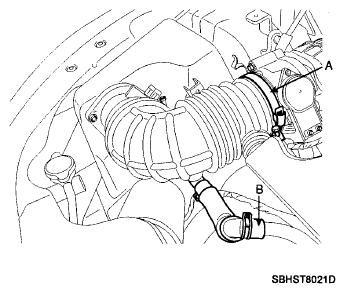

Fig 2: Identifying Seal Ring And Hose
Courtesy of HYUNDAI MOTOR CO.
Loosen the bolts.

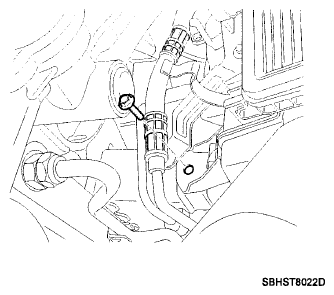

Fig 3: Identifying Bolts (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

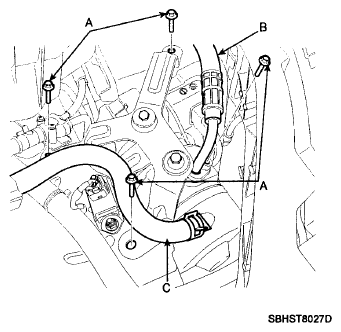

Fig 4: Identifying Bolts (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Remove the Y-connector bracket & air filter bracket by loosening the bolts.

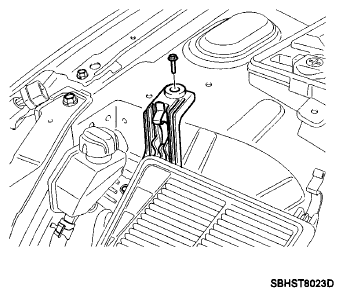

Fig 5: Identifying Y-Connector Bracket & Air Filter Bracket
Courtesy of HYUNDAI MOTOR CO.
Remove the mounting bolt (A), pressure hose (B), return hose (C).
Tightening torque :

45 ~ 60 N.m (4.5 ~ 6.0kgf.m, 33 ~ 43lb-ft)

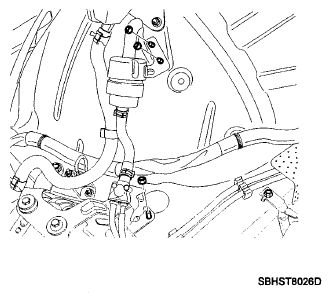

Fig 6: Identifying Mounting Bolt, Pressure Hose And Return Hose
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of the removal.
