Harness Connector

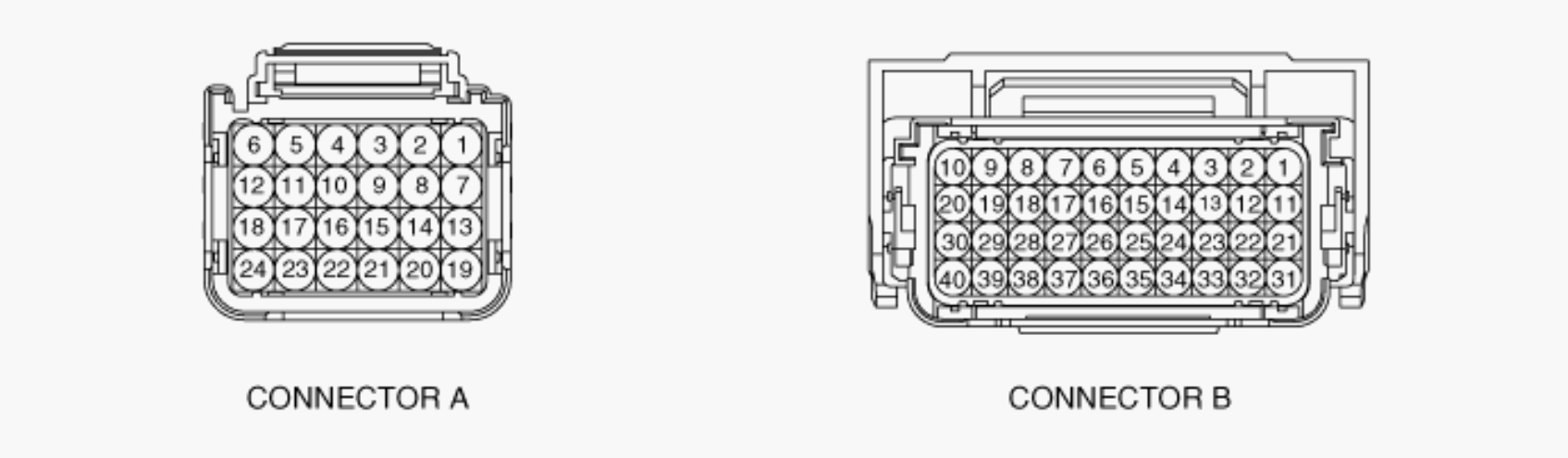

Fig 1: Identifying SRSCM Connector Terminals

Courtesy of HYUNDAI MOTOR CO.

CONNECTOR PIN REFERENCE CHART

Pin	Function (Connector A)	Pin	Function (Connector B)
1	Airbag Warning Lamp	1	Curtain Airbag [Driver] Low
2	Ground	2	Curtain Airbag [Driver] High
3	(2nd stage) Driver Airbag Low	3
4	(2nd stage) Driver Airbag High	4
5	(1st stage) Driver Airbag High	5	Anchor Pretensioner [Driver] Low Side
6	(1st stage) Driver Airbag Low	6	Anchor Pretensioner [Driver] High
7	-	7	Side Airbag [Front-Passenger] High
8	-	8	Side Airbag [Front-Passenger] Low
9	(2nd stage) Passenger Airbag Low	9	Seat Belt Pretensioner [Front-Passenger] Low
10	(2nd stage) Passenger Airbag High	10	Seat Belt Pretensioner [Front-Passenger] High
11	(1st stage) Passenger Airbag High	11	Curtain Airbag [Passenger] Low
12	(1st stage) Passenger Airbag Low	12	Curtain Airbag [Passenger] High
13	Crash Output	13	-Side Airbag [Rear-Passenger] High
14	Seat Belt Reminder Interface	14	-Side Airbag [Rear-Passenger] Low
15	Front Impact Sensor [Driver] Low	15	Side Airbag [Rear-Driver] High
16	Front Impact Sensor [Driver] High	16	Side Airbag [Rear-Driver] Low
17	Front Impact Sensor [Passenger] High	17	Seat Belt Pretensioner [Front-Driver] High
18	Front Impact Sensor [Passenger] Low	18	Seat Belt Pretensioner [Front-Driver] Low
19	CAN_H	19	Side Airbag [Front Driver] Low
20	CAN_L	20	Side Airbag [Front-Driver] High
21	-	21	Pressure Side Impact Sensor [Driver] Low
22		22	Pressure Side Impact Sensor [Driver]High
23	Telltale Warning Lamp	23	Pressure Side Impact Sensor [Passenger] High
24	Ignition	24	Pressure Side Impact Sensor [Passenger] Low
		25	Driver Seat Belt Buckle Switch High
		26	Side Impact Sensor [Rear-Driver] High
		27	Side Impact Sensor [Rear-Driver] Low
		28	Side Impact Sensor [Rear-Passenger] Low
		29	Side Impact Sensor [Rear-Passenger] High
		30	Passenger Seat Belt Buckle Switch High
		31	-
		32	-
		33	-
		34	-
		35	Driver Seat Belt Buckle Switch Low
		36
		37
		38	-
		39	-
		40	Passenger Seat Belt Buckle Switch Low
