Ignition coil

  1. Remove the engine cover (A).

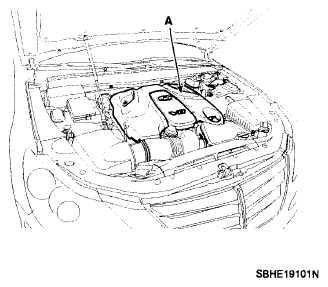

    Fig 1: Identifying Engine Cover
    G06105979Courtesy of HYUNDAI MOTOR CO.
  2. Disconnect the ignition coil connectors (A).

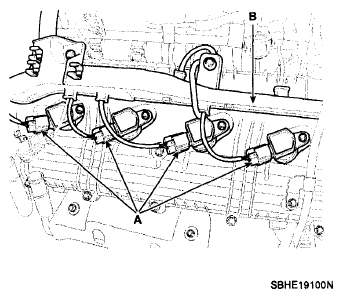

    Fig 2: Identifying Ignition Coil Connectors
    G06105970Courtesy of HYUNDAI MOTOR CO.

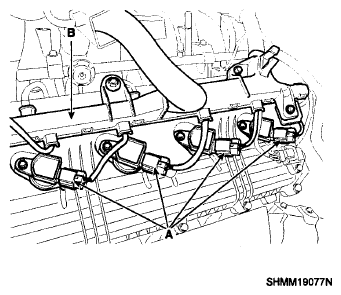

    Fig 3: Identifying Ignition Coil Connectors
    G06105490Courtesy of HYUNDAI MOTOR CO.
  3. Remove the ignition coils (A).

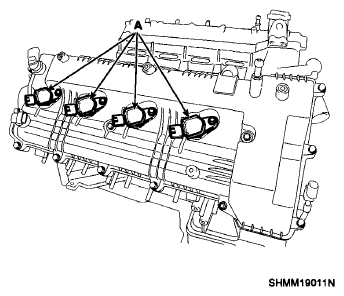

    Fig 4: Identifying Ignition Coils Bank 1, Cylinders 1, 3, 5,&7
    G06105504Courtesy of HYUNDAI MOTOR CO.

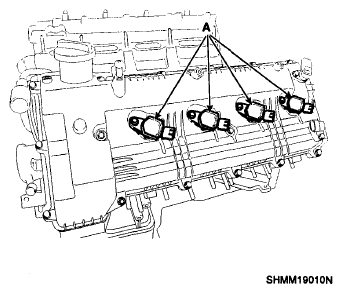

    Fig 5: Identifying Ignition Coils Bank 2, Cylinders 2, 4, 6,&8
    G06105503Courtesy of HYUNDAI MOTOR CO.
  4. Installation is reverse order of removal.
