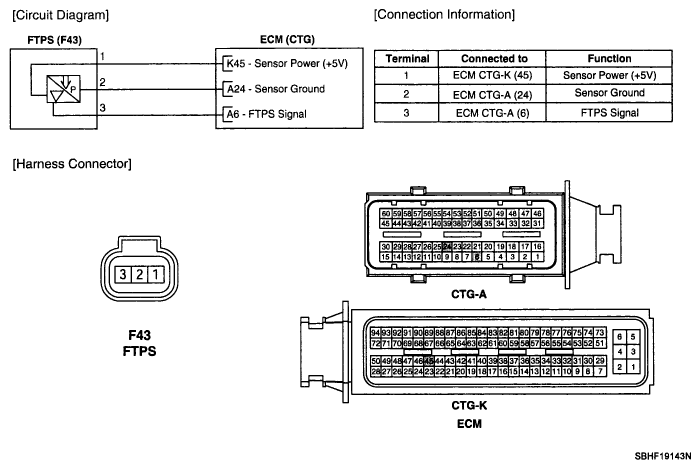

Home >> Hyundai >> 2011 >> Genesis 4.6 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Fuel System (G8BA - GSL 4.6L)) >> Fuel Tank Pressure Sensor (FTPS) >> Circuit Diagram
