Power Seat Control Switch: Inspection

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

Fig 1: Identifying Power Seat Control Switch Connector

Courtesy of HYUNDAI MOTOR CO.

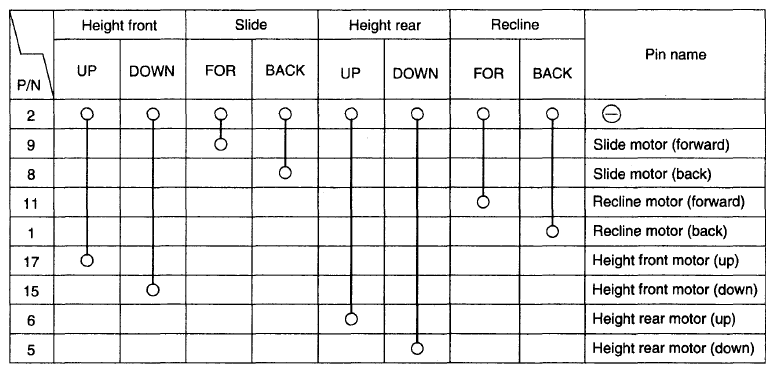

Power seat connector switch A

Fig 2: Power Seat Connector Switch A Continuity Chart

Courtesy of HYUNDAI MOTOR CO.

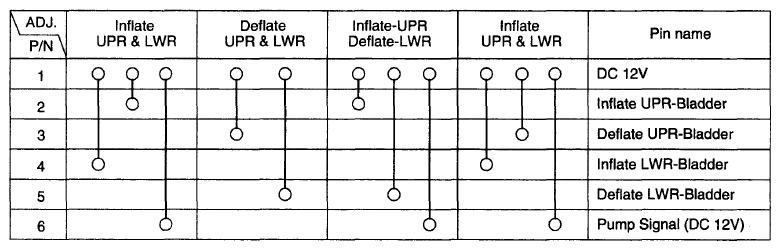

Driver lumbar connector B

Fig 3: Driver Lumbar Connector B Continuity Chart

Courtesy of HYUNDAI MOTOR CO.

Assist seat connector switch C

Fig 4: Assist Seat Connector Switch C Continuity Chart

Courtesy of HYUNDAI MOTOR CO.
