Component Location
Component Location

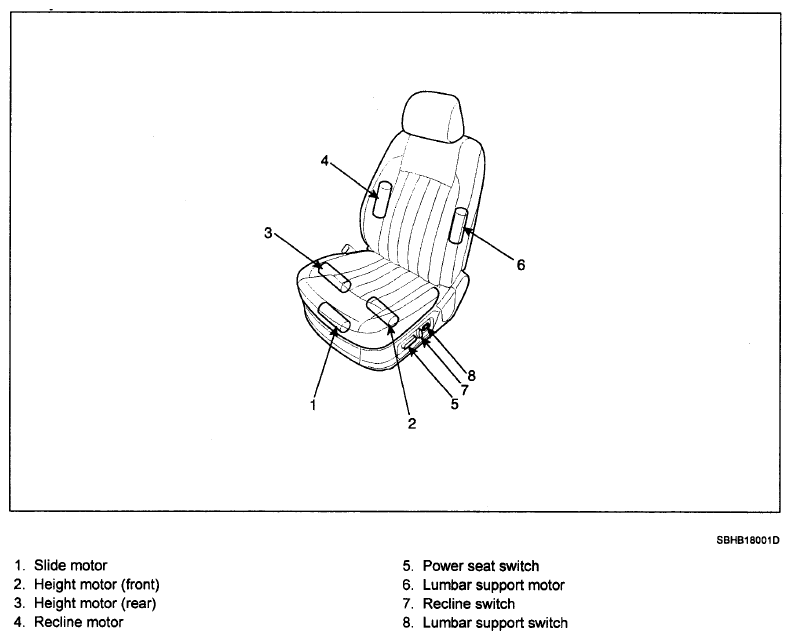

Fig 1: Identifying Seat Electrical Components Location
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
