Interior C
Interior C

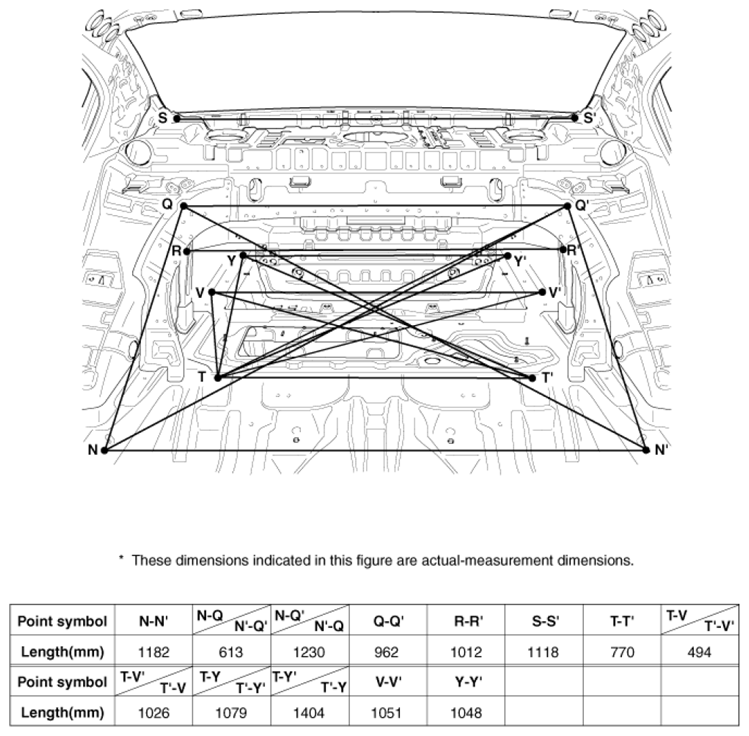

Fig 1: Identifying Interior C Dimensions (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

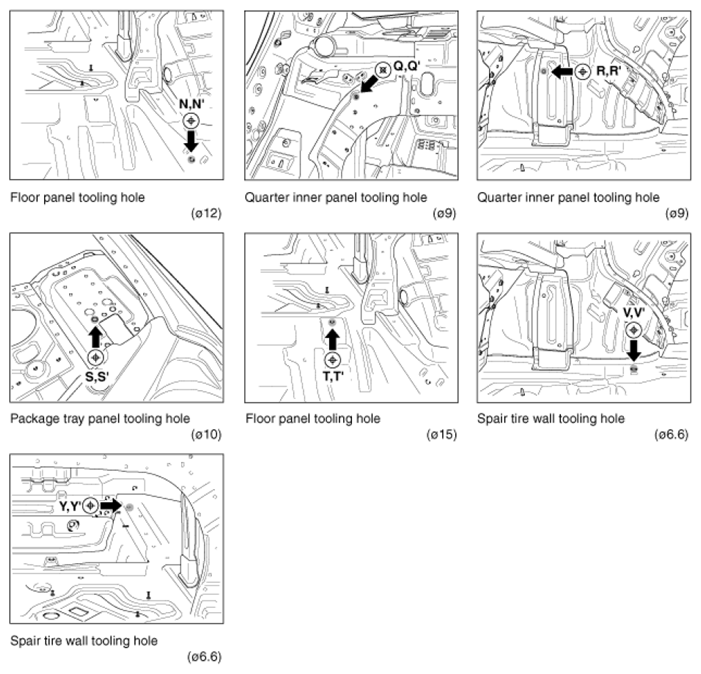

Fig 2: Identifying Interior C Dimensions (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
