Interior Antenna Actuation Check

Set the smart key in the following shade area and check the IG ON.

Fig 1: Identifying Smart Key Setting Area
Courtesy of HYUNDAI MOTOR CO.
If the ignition is ON, the antenna runs normal.
Check the interior antenna ignition mode.
Set the smart key in the following shade area and actuate the antenna. Check the LED of smart key is blinking.

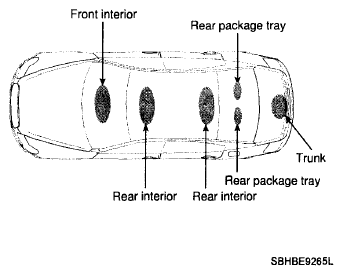

Fig 2: Identifying Front Interior, Rear Interior, Rear Package Tray And Trunk
Courtesy of HYUNDAI MOTOR CO.
If the LED of smart key is not blinking, check the antenna in shade area.

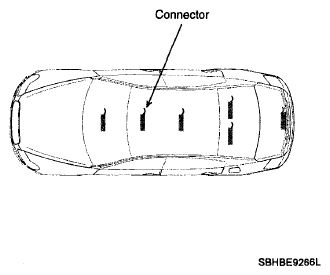

Fig 3: Identifying Antenna Connector
Courtesy of HYUNDAI MOTOR CO.
