Back View Camera
>>
Circuit Diagram
Circuit Diagram

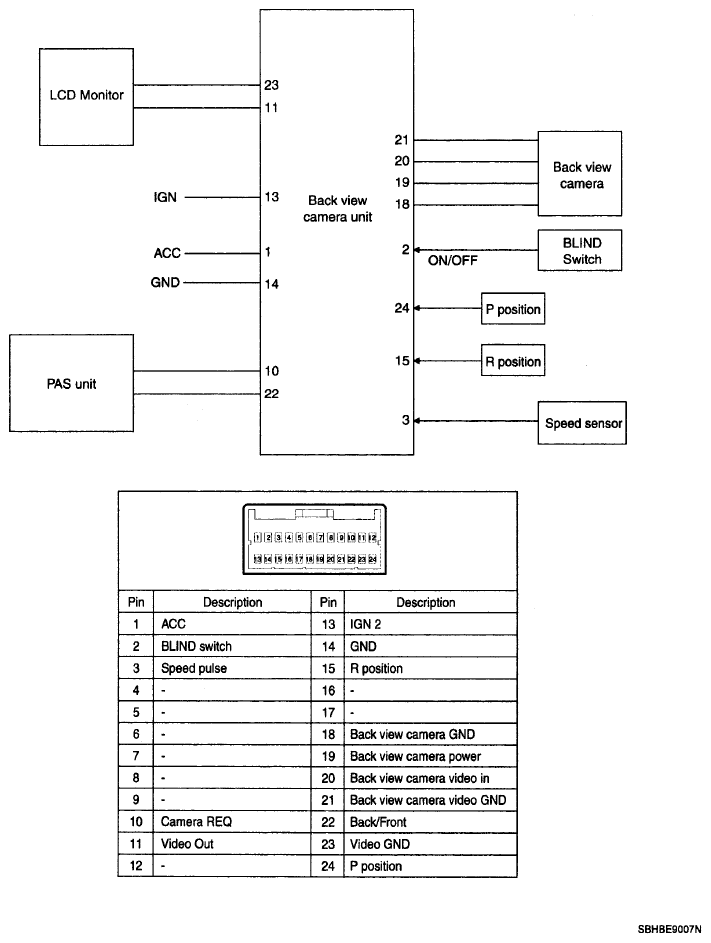

Fig 1: Back View Camera System Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
