Chart 1

Fig 1: Troubleshooting Flow Chart - Radio And CD Player Have No Sound At All
G05331695Courtesy of HYUNDAI MOTOR CO.

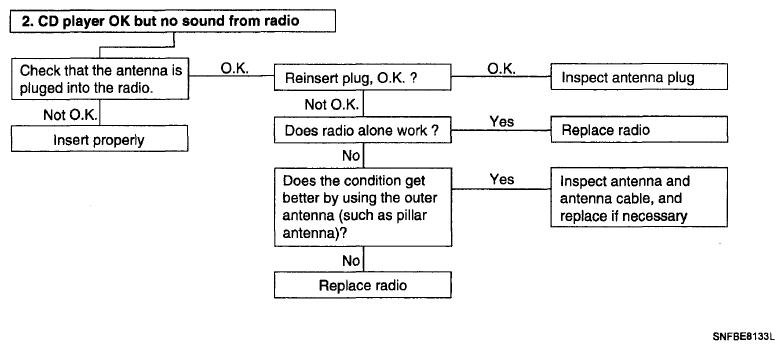

Fig 2: Troubleshooting Flow Chart - CD Player OK But No Sound From Radio
G06103606Courtesy of HYUNDAI MOTOR CO.
