Rear Seat Audio Remote Control

Disconnect the negative (-) battery terminal.
Remove the rear seat (Refer to REAR SEAT ).

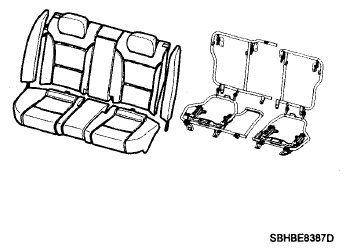

Fig 1: Identifying Rear Seat
Courtesy of HYUNDAI MOTOR CO.
Remove the arm rest (A) from the rear seat and disconnect the connector (B).

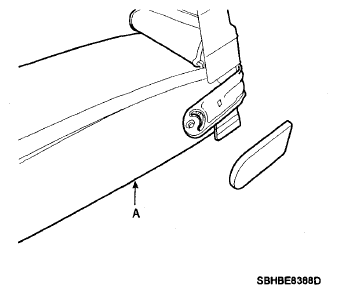

Fig 2: Identifying Arm Rest
Courtesy of HYUNDAI MOTOR CO.

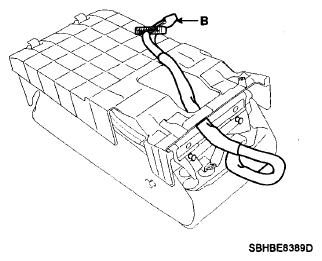

Fig 3: Identifying Rear Seat Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the arm rest cover (A) after removing the screws.

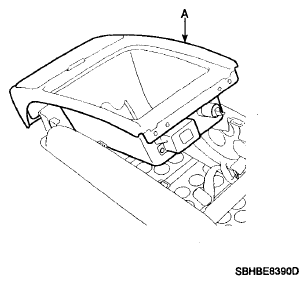

Fig 4: Identifying Arm Rest Cover
Courtesy of HYUNDAI MOTOR CO.
Disconnect the rear seat audio remote control connector (A) after removing the arm rest cover.

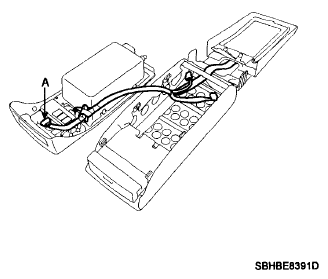

Fig 5: Identifying Rear Seat Audio Remote Control Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the rear seat audio remote control unit (A).

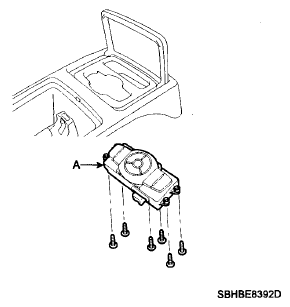

Fig 6: Identifying Rear Seat Audio Remote Control Unit
Courtesy of HYUNDAI MOTOR CO.
