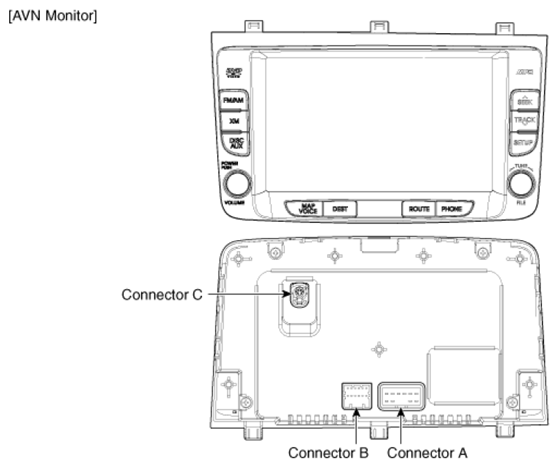

Components Location
Courtesy of HYUNDAI MOTOR CO. FRONT LCD MONITOR CONNECTOR DESCRIPTION CHART
| |
|
|
|
| Pin No. |
Connector A |
Connector B |
Connector C |
| 1 |
ILL - |
RX- |
GND |
| 2 |
- |
RX + |
LVDS- |
| 3 |
BATT |
TX- |
LVDS + |
| 4 |
Power GND |
TX + |
GND |
| 5 |
ILL + |
PGND |
|
| 6 |
Power GND |
LCD ON/OFF |
| 7 |
CAN L |
Power ON |
| 8 |
CAN H |
LOCK |
| 9 |
ACC |
GND |
| 10 |
Power GND |
- |
| 11 |
|
- |
| 12 |
|
- |
