Components and Components Location: Components

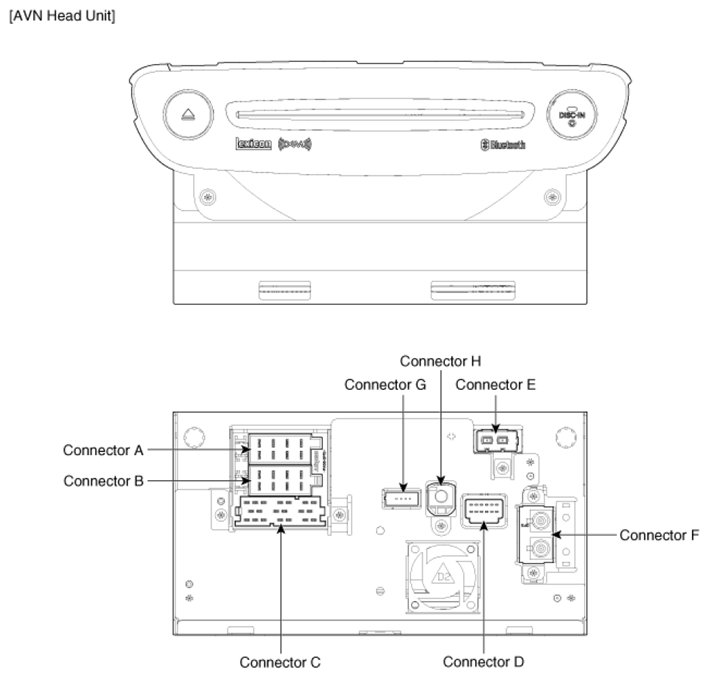

Fig 1: Identifying Audio Video Navigation Head Unit

Courtesy of HYUNDAI MOTOR CO.

CONNECTOR A DESCRIPTION CHART

Connector A	Pin	Description
	1	Speed
	2	Speed Illumination +
	3	-
	4	BAT +
	5	Reverse
	6	ACC
	7	Illumination -
	8	Power GND

CONNECTOR B DESCRIPTION CHART

Connector B	Pin	Description
	1	Rear RH speaker+
	2	Front RH speaker +
	3	Front LH speaker +
	4	Rear LH speaker +
	5	Rear RH speaker -
	6	Front RH speaker -
	7	Front LH speaker -
	8	Rear LH speaker -

CONNECTOR C DESCRIPTION CHART

Connector C	Pin	Description
	1	Camera - REQ
	2	Back View V GND
	3	AUX R
	4	AUX L
	5	Amp mute
	6	-
	7	CAN Low
	8	Auto light
	9	Back View IN
	10	AUX GND
	11	AUX Detect
	12	Mode SEL
	13	-
	14	Camera Front/Rear
	15	IGN
	16	V - GND
	17	iPod V IN
	18	Amp remote
	19	-
	20	CAN High

CONNECTOR D DESCRIPTION CHART

Connector D (AUX)	Pin	Description
	1	AUX L IN
	2	AUX R IN
	3	AUX DET
	4	AUX Video
	5	-
	6	ILL +
	7	AUX GND
	8	Shield GND
	9	-
	10	AUX V GND
	11	-
	12	-

CONNECTOR E DESCRIPTION CHART

Connector E (Radio)	Pin	Description
	1	Signal
	2	Ground

CONNECTOR F DESCRIPTION CHART

Connector F (GPS/TDMB)	Pin	Description
	1	-
	2	GPS signal

CONNECTOR G DESCRIPTION CHART

Connector G (USB)	Pin	Description
	1	USB VCC
	2	USB D (-)
	3	USB D (+)
	4	USB GND

CONNECTOR H DESCRIPTION CHART

Connector H (LVDS)	Pin	Description
	1	LVDS-
	2	GND
	3	GND
	4	LVDS +
