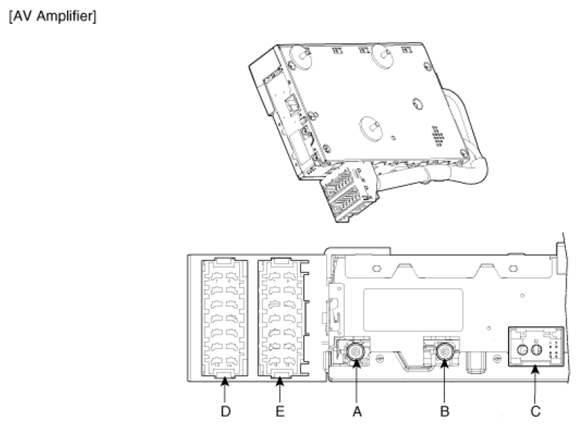

Components Location
CONNECTOR A DESCRIPTION CHART
| Connector A | Pin | Description |
|---|---|---|
| 1 | Antenna 1 |
CONNECTOR B DESCRIPTION CHART
| Connector B | Pin | Description |
|---|---|---|
| 1 | Antenna 2 |
CONNECTOR C DESCRIPTION CHART
| Connector C | Pin | Description |
|---|---|---|
| T | Tx LWL | |
| R | Rx LWL |
CONNECTOR D DESCRIPTION CHART
| Connector D | Pin | Description |
|---|---|---|
| 1 | Sub woofer 1+ | |
| 2 | Sub woofer 1- | |
| 3 | Sub woofer 2+ | |
| 4 | Sub woofer 2- | |
| 5 | Front left middle Speaker + | |
| 6 | Front left middle Speaker - | |
| 7 | Rear left door Speaker + | |
| 8 | Rear left door Speaker - | |
| 9 | Rear right door Speaker + | |
| 10 | Rear right door Speaker - | |
| 11 | Front right middle Speaker + | |
| 12 | Front right middle Speaker - | |
| 13 | GND | |
| 14 | BAT + |
CONNECTOR E DESCRIPTION CHART
| Connector E | Pin | Description |
|---|---|---|
| 1 | Surround speaker LH + | |
| 2 | Surround speaker LH - | |
| 3 | Surround speaker RH + | |
| 4 | Surround speaker RH - | |
| 5 | Center speaker + | |
| 6 | Center speaker - | |
| 7 | Front left door speaker 1 + | |
| 8 | Front left door speaker 1 - | |
| 9 | Front left door speaker 2 + | |
| 10 | Front left door speaker 2 - | |
| 11 | Front right door speaker 1 + | |
| 12 | Front right door speaker 1 - | |
| 13 | Front right door speaker 2 + | |
| 14 | Front right door speaker 2 - |
