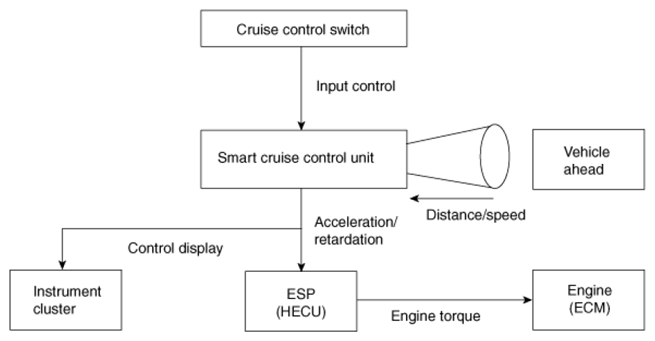

System Block Diagram
Component Parts And Function Outline
PARTS FUNCTION CHART
| Component part | Function |
|---|---|
| Cruise Control Switch | Input the set speed and distance to the SCC ECU. |
| Instrument Cluster | Display various information inputted from SCC. |
| Smart Cruise Control Unit | Recognize and track the vehicle ahead. Calculate the target speed and distance Request the acceleration and retardation to ESP |
| ESP (HECU) | Automatic braking Request the engine torque control to the engine (ECM) |
| Engine (ECM) | Control the engine torque |
