Circuit Diagram (1)

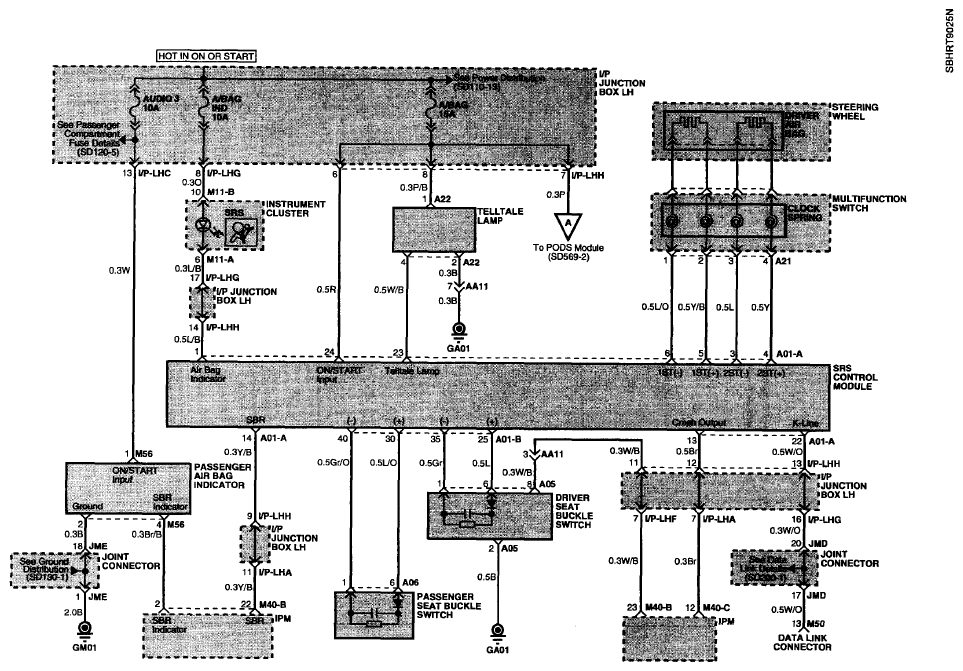

Fig 1: SRSCM - Circuit Diagram (1 Of 3)

G06100971

Courtesy of HYUNDAI MOTOR CO.
