Repair procedures: Replacement

WARNING: This page is about a different car, the 2011 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad and heater blower unit.

    (Refer to "HEATER UNIT ")

  3. Remove the blower unit (A) from the heater unit after loosening a mounting bolt and screws.

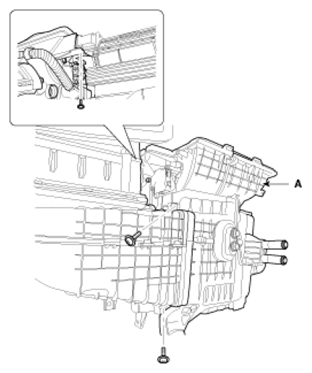

    Fig 1: Identifying Blower Unit
    G07257076Courtesy of HYUNDAI MOTOR CO.
    NOTE: Make sure that there is no air leaking out of the blower and duct joints
  4. Installation is the reverse order of removal.
