Home >> Hyundai >> 2011 >> Genesis 3.8 >> Repair and Diagnosis >> Brakes >> Traction Control >> ESC (Electronic Stability Control) >> Rear Wheel Speed Sensor >> Components

Rear Wheel Speed Sensor: Components

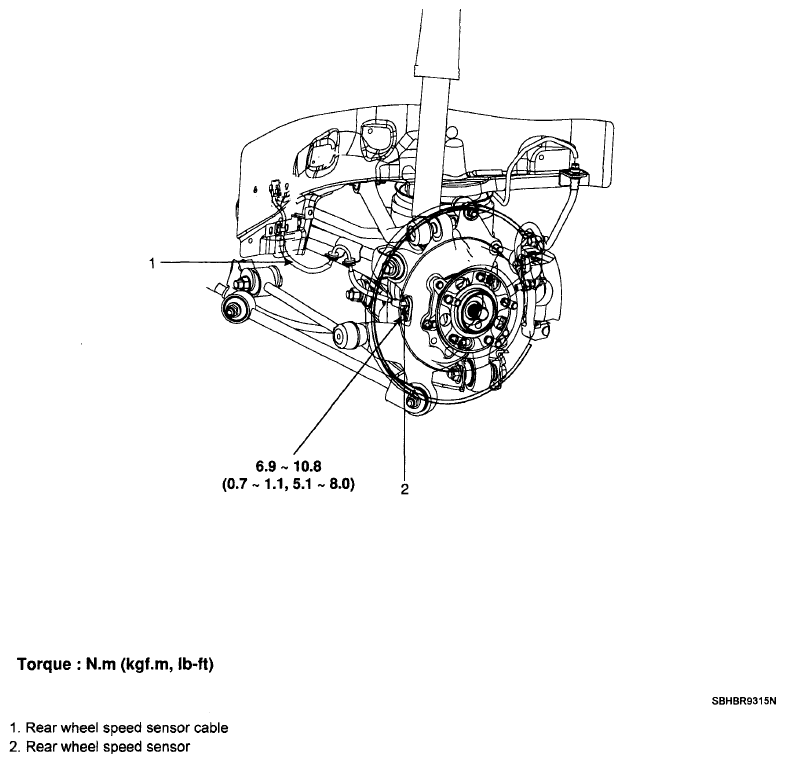

Fig 1: Rear Wheel Speed Sensor Replacement Components With Torque Specifications

G06101261

Courtesy of HYUNDAI MOTOR CO.
