Crash Pad Replacement

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the following items:
1. Front seat
2. Cluster fascia panel, cluster
3. Audio assembly
4. Glove box
5. Crash pad side cover
6. Front pillar trim
Remove the crash pad lower panel (A).

Fig 1: Identifying Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A).

Fig 2: Identifying Crash Pad Lower Panel Connector
Courtesy of HYUNDAI MOTOR CO.
Disconnect the passenger's air bag connector (A).

Fig 3: Identifying Passenger's Air Bag Connector
Courtesy of HYUNDAI MOTOR CO.
Disconnect the center speaker connector (A).

Fig 4: Identifying Center Speaker Connector
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A).

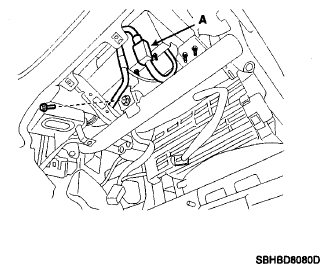

Fig 5: Identifying Connector
Courtesy of HYUNDAI MOTOR CO.
Loosen the bolts and nuts, then remove the crash pad (A).

Fig 6: Identifying Crash Pad With Bolts And Nuts
Courtesy of HYUNDAI MOTOR CO.
Remove the photo sensor connector (A).

Fig 7: Identifying Photo Sensor Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the rain sensor connector (A).

Fig 8: Identifying Rain Sensor Connector
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in property, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customers radio station presets.
