Interior 3 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear seat assembly. (Refer to REAR SEAT )
  3. Remove the package tray trim (A) after removing the screws.

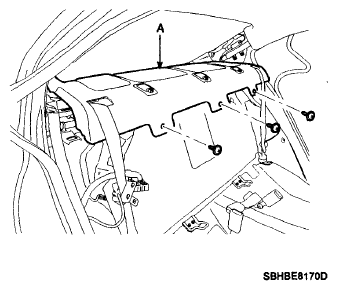

    Fig 1: Identifying Package Tray Trim With Screws
    G06103719Courtesy of HYUNDAI MOTOR CO.
  4. Remove the interior 3 antenna (A) after removing the nut and connector.
    Fig 2: Identifying Interior 3 Antenna
    G06103720Courtesy of HYUNDAI MOTOR CO.
