Audio Unit: Components

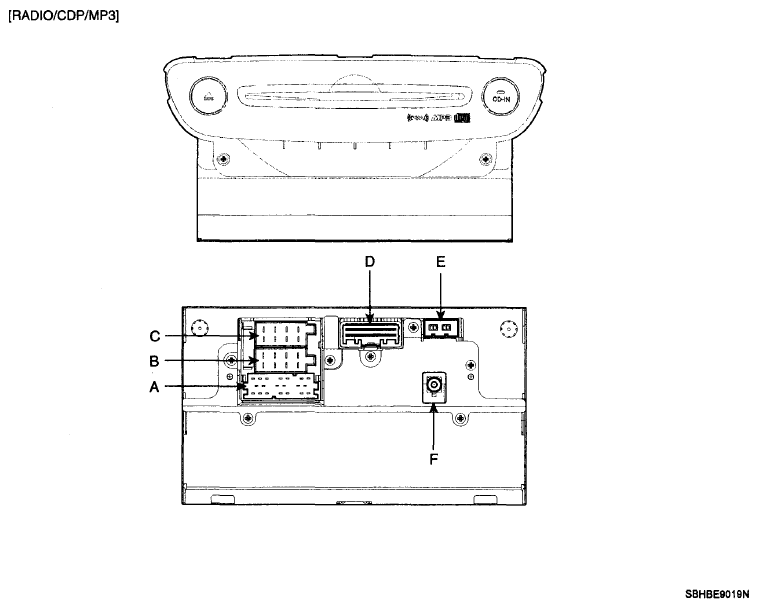

Fig 1: Identifying Audio Unit Components

Courtesy of HYUNDAI MOTOR CO.

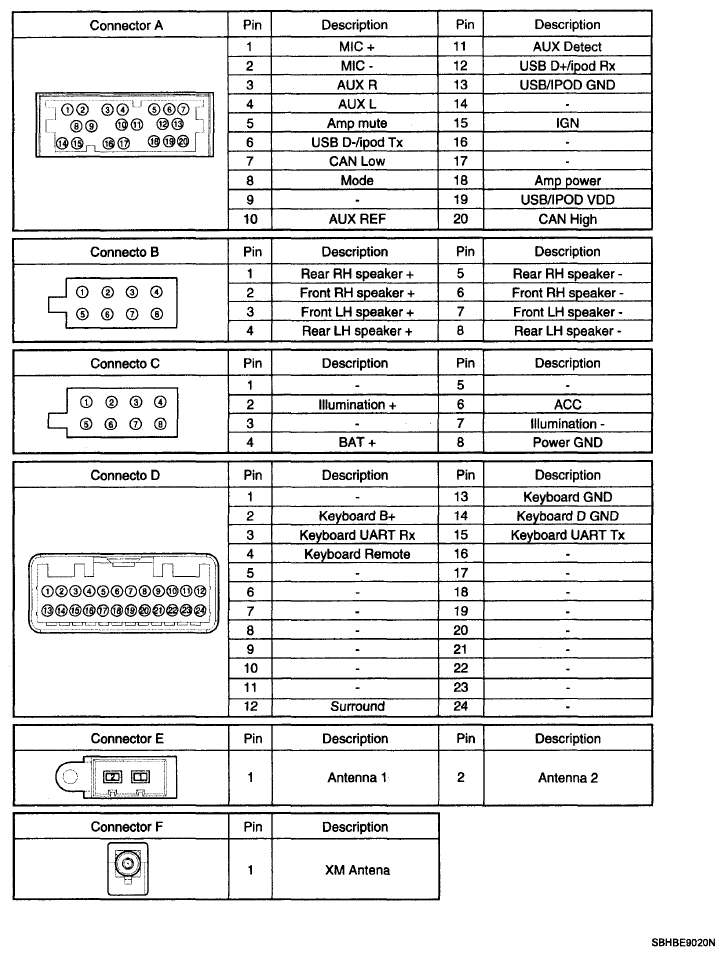

Fig 2: Identifying Audio Unit Connector Terminals

Courtesy of HYUNDAI MOTOR CO.

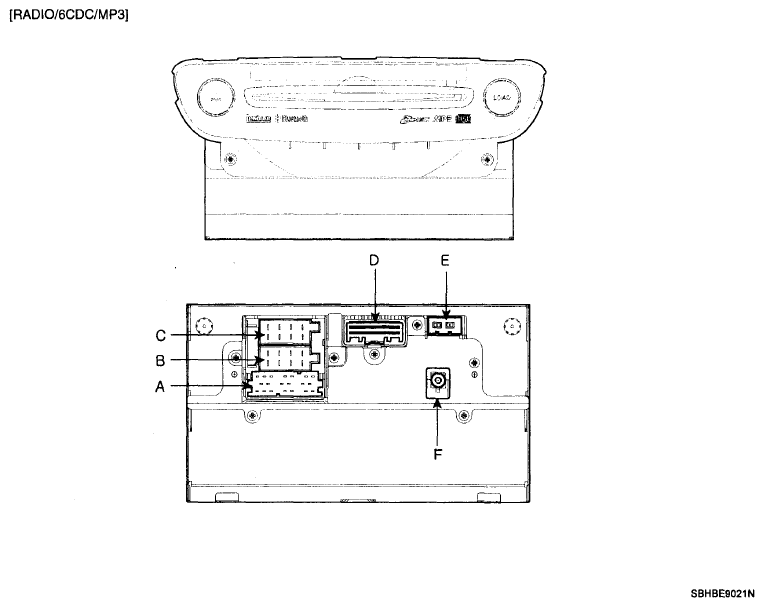

Fig 3: Identifying Radio/6CDC/MP3 Components

Courtesy of HYUNDAI MOTOR CO.

Fig 4: Identifying Radio/6CDC/MP3 Connector Terminals

Courtesy of HYUNDAI MOTOR CO.

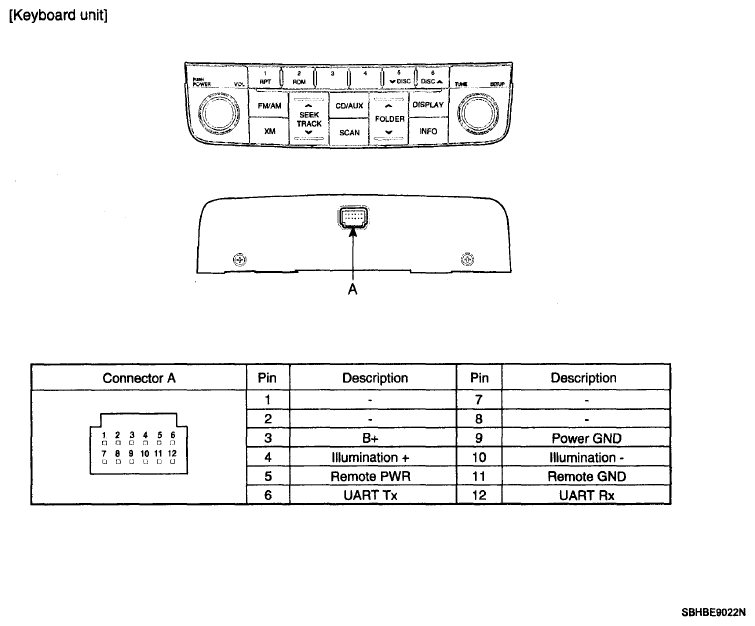

Fig 5: Identifying Keyboard Unit Components

Courtesy of HYUNDAI MOTOR CO.

Fig 6: Identifying Monitor Unit Connector Terminals

Courtesy of HYUNDAI MOTOR CO.
