Steering Wheel Remote Control

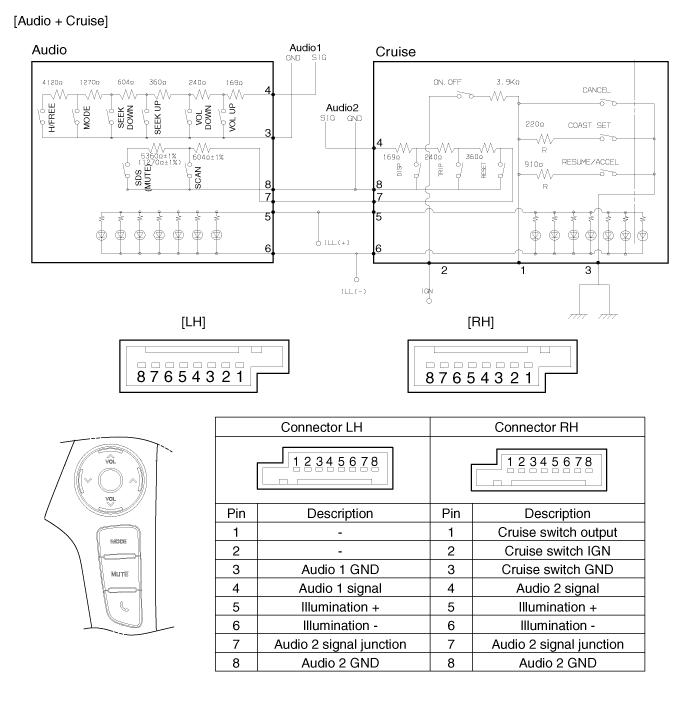

Fig 1: Steering Wheel Remote Control - Audio & Cruise Circuit Diagram
G00498863Courtesy of HYUNDAI MOTOR CO.

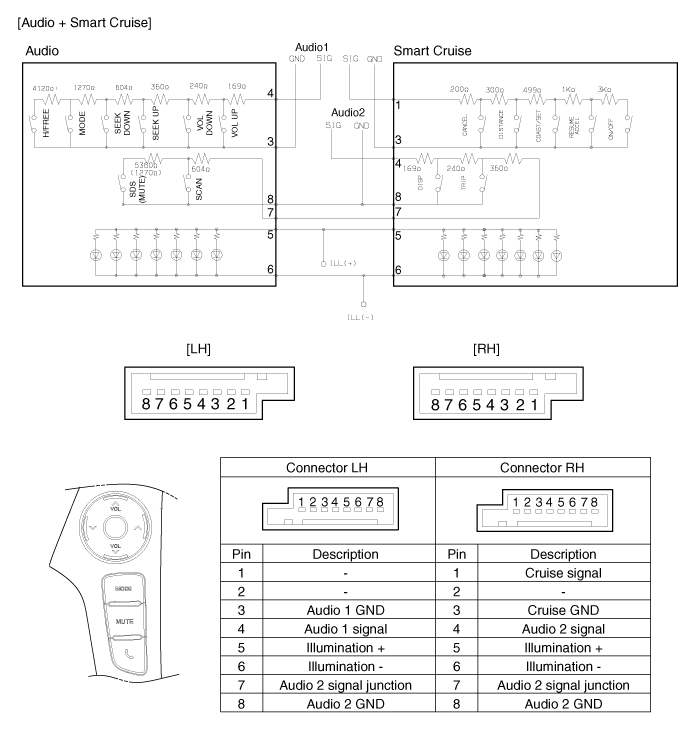

Fig 2: Steering Wheel Remote Control - Audio & Smart Cruise Circuit Diagram
G00498864Courtesy of HYUNDAI MOTOR CO.
