Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim panel (Refer to FRONT DOOR
  3. Remove the door module (DDM) (A) from the front door trim panel after disconnecting module connector.

    Be careful not to damage the door module removing the clip.

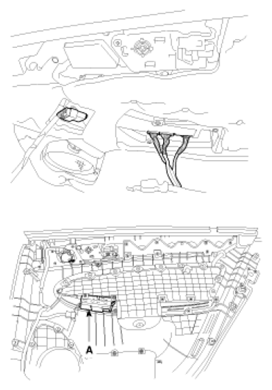

    Fig 1: Locating Door Module (DDM)
    G07302543Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the door module (A) from the front door trim panel.
    Fig 2: Locating Door Module
    G07302544Courtesy of HYUNDAI MOTOR AMERICA
