IPM (Instrument Panel Module)

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel (A). (Refer to the REPLACEMENT )

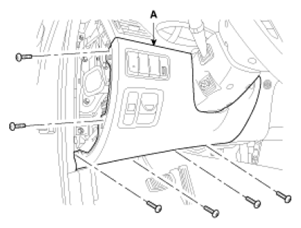

    Fig 1: Identifying Crash Pad Lower Panel And Screws
    G07302479Courtesy of HYUNDAI MOTOR CO.
  3. Remove the IPM (A) after removing the nut and connector.
    Fig 2: Identifying IPM, Nut And Connector
    G07302480Courtesy of HYUNDAI MOTOR CO.
    Fig 3: Locating IPM
    G07302481Courtesy of HYUNDAI MOTOR CO.
