Component Location

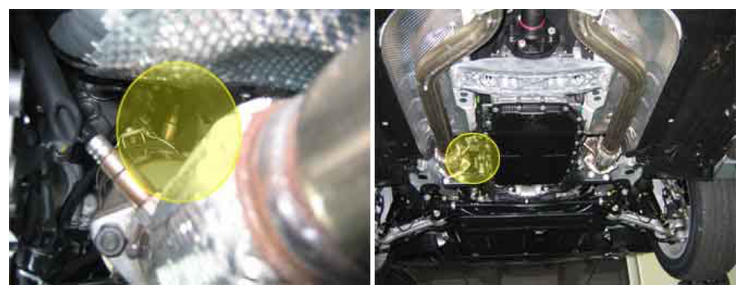

Fig 1: Identifying Rear Heated Oxygen Sensor Location (Bank 2/Sensor 2)
G07305910Courtesy of HYUNDAI MOTOR CO.
