Components and Components Location: Components

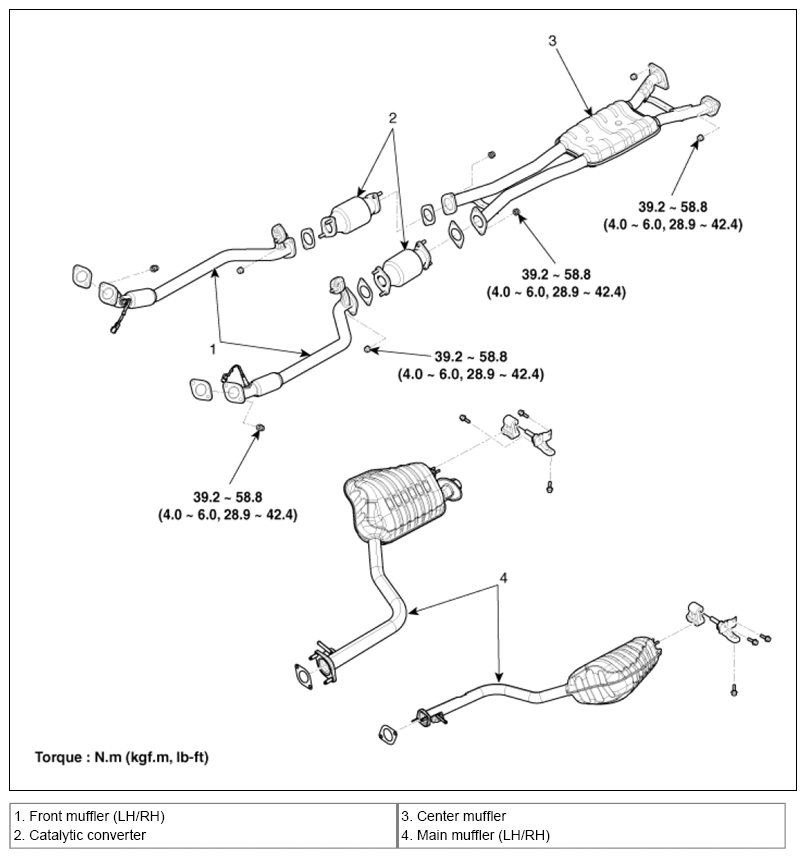

Fig 1: Exploded View Of Muffler And Catalytic Converter With Torque Specifications

G07309006

Courtesy of HYUNDAI MOTOR CO.
