Components and Components Location: Components

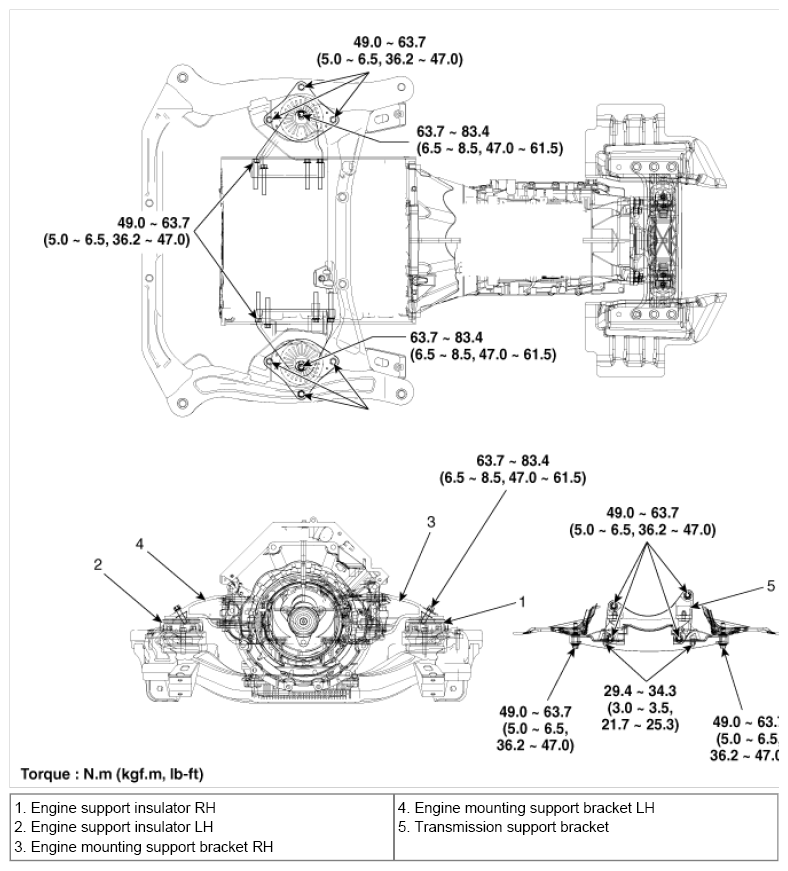

Fig 1: Engine And Transmission Assembly Replacement Components With Torque Specifications

G07308548

Courtesy of HYUNDAI MOTOR CO.
