Spark test

Disconnect the ignition coil connectors (A).

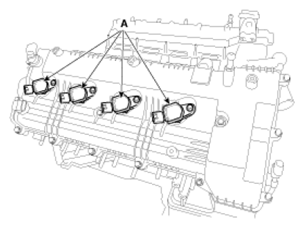

Fig 1: Identifying Ignition Coil Connectors
Courtesy of HYUNDAI MOTOR CO.

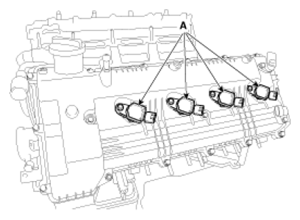

Fig 2: Identifying Ignition Coil Connectors
Courtesy of HYUNDAI MOTOR CO.
Remove the ignition coils (A).
Tightening torque:

9.8 ~ 11.8N.m (1.0 ~ 1.2kgf.m, 7.2 ~ 8.7lb-ft)

NOTE: Bank #1 consist of cylinders #1, #3, #5, & #7

Fig 3: Identifying Ignition Coils (Bank 1)
Courtesy of HYUNDAI MOTOR CO.

NOTE: Bank #2 consist of cylinders #2, #4, #6, & #8

Fig 4: Identifying Ignition Coils (Bank 2)
Courtesy of HYUNDAI MOTOR CO.
Using a spark plug socket, remove the spark plug.
Install the spark plug to the ignition coil.
Ground the spark plug to the engine.

Fig 5: Installing Spark Plug To Ignition Coil
Courtesy of HYUNDAI MOTOR CO.

NOTE: Crank the engine for no more than 5 ~ 10 seconds.

To prevent fuel being injected from injectors while the engine is being cranked, disconnect the injector connector.
Inspect all the spark plugs.
Using a spark plug socket, install the spark plug.
Tightening torque:

24.5 ~ 29.4N.m (2.5 ~ 3.0kgf.m, 18.1 ~ 21.7lb-ft)
Install the ignition coil.
Reconnect the ignition coil connector.

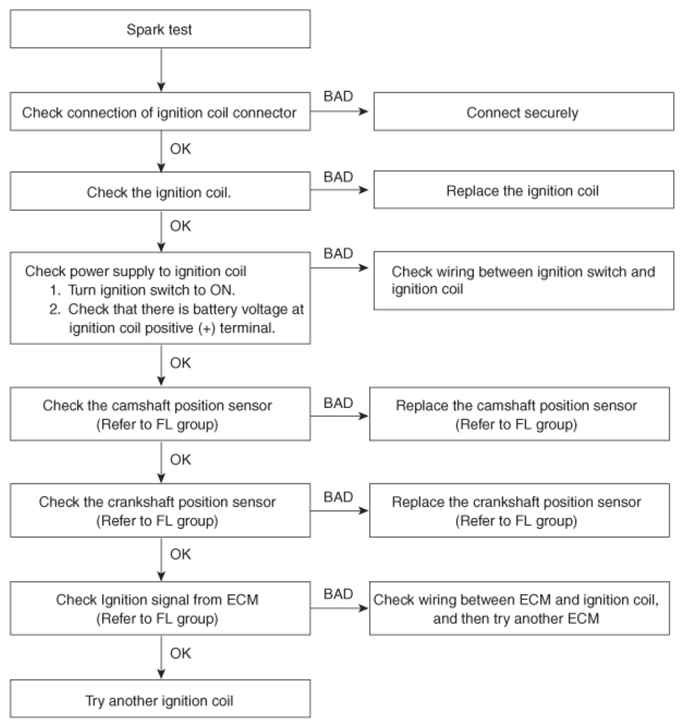

Fig 6: Spark Test Flow Chart
Courtesy of HYUNDAI MOTOR CO.
